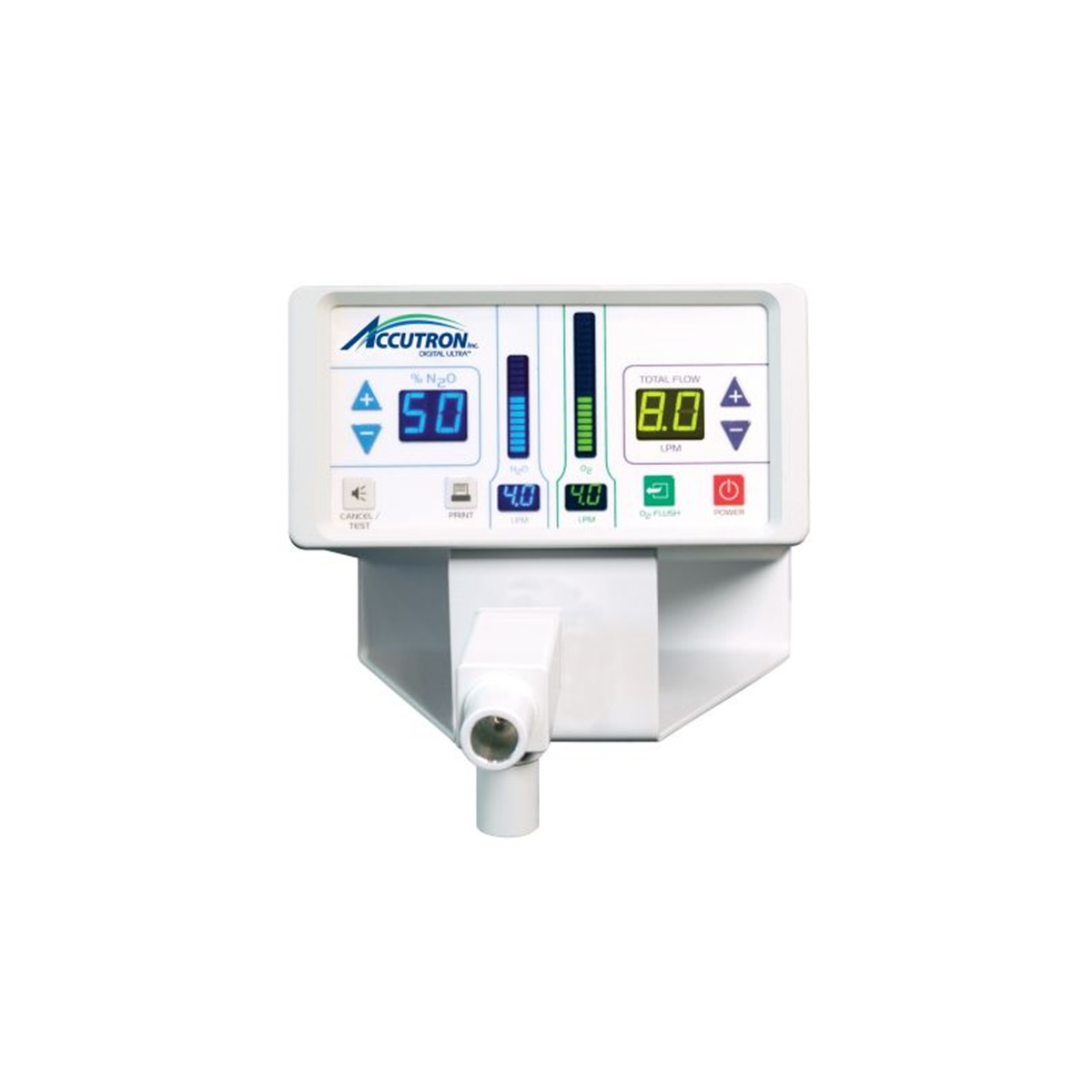

Accutron 51975 Digital Ultra Flushmount Flowmeter Only
The Digital Ultra™ Flushmount is the right choice for clinicians who prefer to work in a digital environment but want critical parameters displayed both numerically and as electronic flow tubes. The ease of color-coded, fingertip controls is an additional feature of the flowmeter. Its sealed flush surface makes it easy to disinfect or barrier-protect. The unit’s design complements aseptic, contemporary operatory environments.
- Automatic compensation to easily adjust total flow or gas ratio
while the other stays constant. - Both digital and electronic flow tube displays for ease of use.
- Maximum N2O ratio at 70% for patient safety.
- Audible and visual alarms to notify of low oxygen.
- Oxygen fail-safe and flush for additional safety.
- Emergency oxygen resuscitation connector.
- Sealed flush surface makes it easy to disinfect or barrier-protect.
- Multiple mounting options available.
- This only includes the Flushmount Flowmeter Only
All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.
- Dimensions (W x H x D)
Flushmount Control Module: 9 1/4″ x 4″ x 1 1/2″
Remote Main Module: 8″ x 4″ x 7 1/2″
Mounted Dimensions (W x H x D): 9 1/2″ x 4 1/4″ x 1/4″ - Weight Flushmount Control Module: 1.3 lbs (0.6 kg)
- Weight Remote Main Module: 6.1 lbs (2.8 kg)
- Mixed Gas Outlet Diameter: 7/8″ Nominal (22 mm)
- Oxygen Inlet: Male DISS (CGA 1240)
- N2O Inlet: Male DISS (CGA 1040)
- N2O Mixed Ratio Range: 0-70%
- Oxygen Flow Range: 1.0-9.9 LPM
- N2O Flow Range: 0-6.9 LPM
- Inlet Pressure (each gas): 50-55 psi
- Resuscitator Connector: Quick Connect (1/4″ Imperial) at Remote Outlet
- Resuscitator Connector Flow: 100 LPM Oxygen
- Power Requirements: 100-240 Volt AC; 50-60 Hz
