Allied Healthcare 1327-C Oxequip Vacuum Outlet Finishing Kit
The Oxequip® Med*Star® Series outlet stations provide convenient access to medical gases in patient care locations. They are fully compatible with Med*Star and ’07 Series adapters.
The outlets can be grouped together in any order desired by the facility. Outlets are spaced 5″ (12.7 cm) center to center. Outlet finish plates and rough-in plates are pin indexed using steel pins for positive cross-connection prevention. Valve bodies are separate from the finish plate, allowing easy testing for leaks and cross connection, and contain a self-sealing poppet. Valve bodies are field adjustable to compensate for variations in plaster thickness of 12.7 mm (1/2″) to 19 mm (3/4″).
The 152.5 mm (6″) Type K copper inlet tube has a 9.5 mm (3/8″) ID (12.7 mm (1/2″) OD) connection, and can rotate 360 degrees to accommodate any field piping arrangement. The primary gas check can be serviced without shutting off the gas supply.
The cam plate contains a positive latching mechanism to retain the adapter in the outlet. The adapter is removed by operating the release mechanism which is integral to the Med*Star adapter (’07 Series adapters use the twist mechanism).
All components (cam plate, tumbler, valve body, poppet, faceplate) are individually field replaceable.
The outlet stations are fully compliant with NFPA 99 (2002) and CSA Z-305, and are cleaned for oxygen service in accordance with CGA G-4.1. The outlet is UL listed. Rough-in plates for the outlets are zinc plated steel for corrosion resistance and fire safety. Finish plates are die-cast zinc, chrome-plated with brushed stainless inserts for appearance. Gas identification is provided by a polycarbonate plastic insert, color-coded by gas service.
The cam plate/tumbler assembly is color-coded and labeled for the gas service. Release is easily accomplished with one hand using the adapter release mechanism. The primary valve poppet provides a dust proof seal. Vacuum outlets may be used with or without slide brackets for vacuum collection bottles of up to 2 liters (1/2 gallon) capacity (where slides are used, provide one per vacuum outlet).

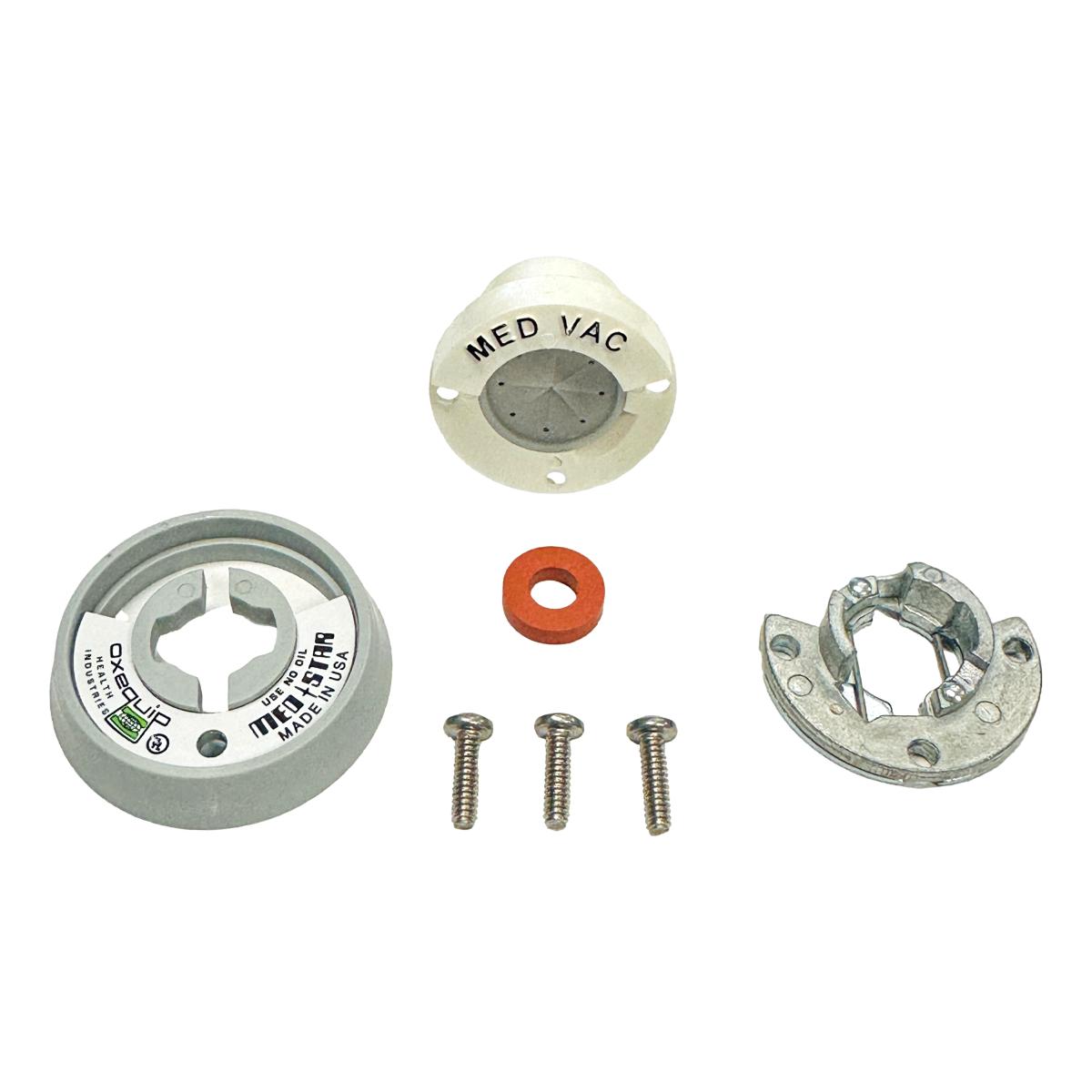

- 3 Cover-Plate Screws
- Cover Plate
- Cam Plate
- Vacuum Color-coded Pin-Indexed Tumble (White)
- Seat Washer
- Cleaned for Medical Service
