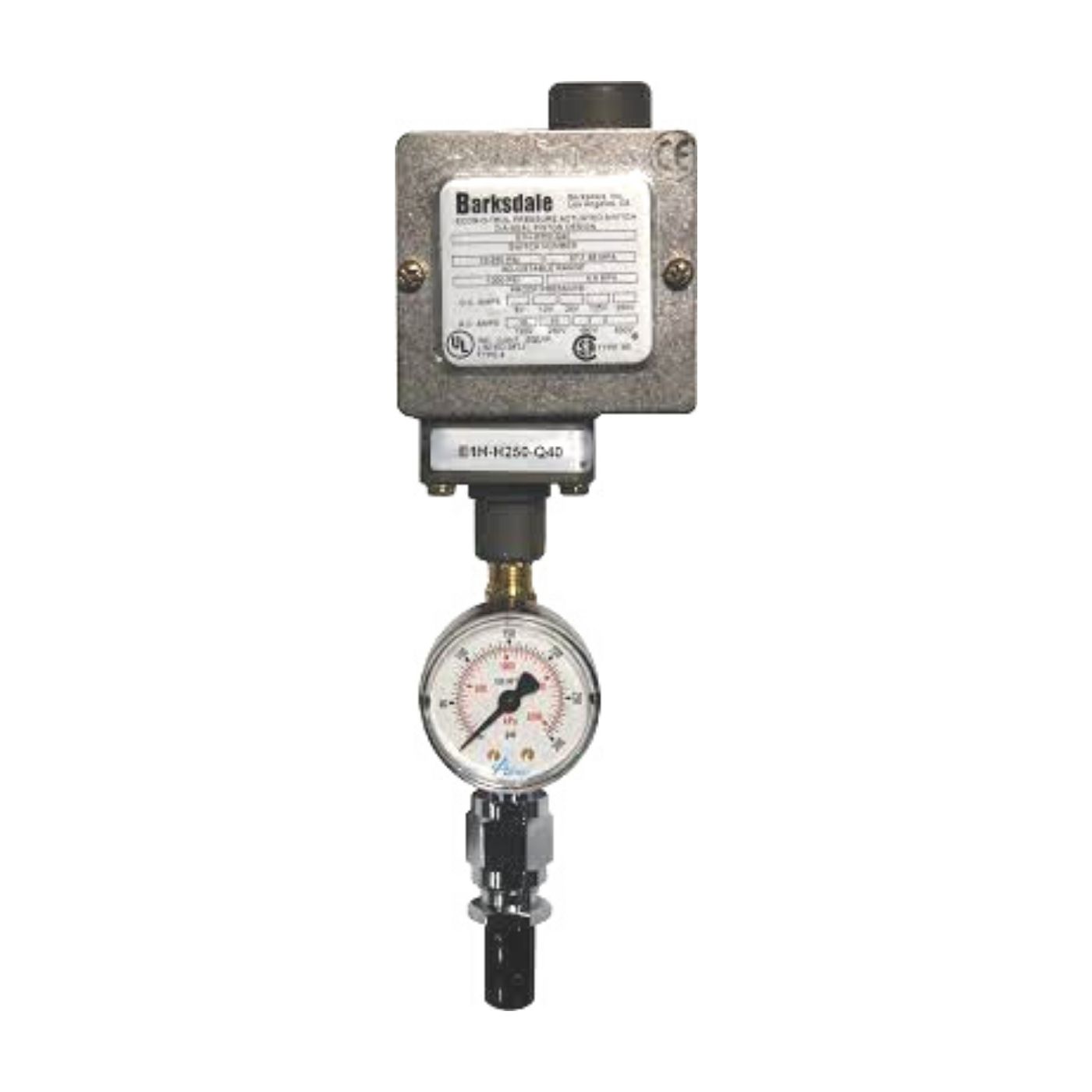

Amico M-PRSW-GA-CO2 Medical CO2 Pressure Switch Gauge Assembly

Description

AMICO M-PRSW-GA-CO2 CO2 Pressure Switch Gauge Assembly

Pressure switches for the medical gas alarm system incorporate a U.L. Listed single pole double throw snap-action micro switch. The pressure switch is prewired with six color coded leads (3 leads for vacuum). Normally open or normally closed circuitry is field-selected to be compatible with the medical gas alarm system design.

Electrical rating is 10 amperes at 120 volt AC. The pressure switch is tested at 160 psi with an adjustable range of .5 to 80 psi and have external calibration dials with tamper-proof cover. Factory settings are 40 psi and 60 psi for pressure gases. The switch enclosure is a Nema 4 water tight housing with mounting bracket, 1/4″ FNPT bottom inlet. UL Listed and CSA Approved.

• CO2

Amico ACP Pressure Switch with Gauge Assembly – Specs
