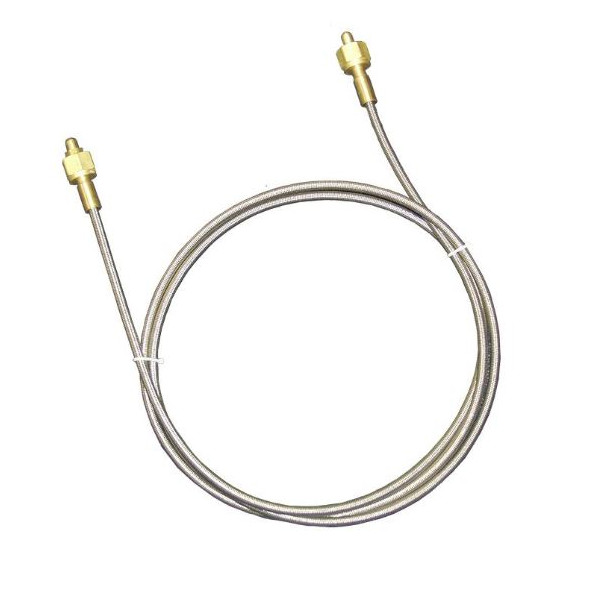

Amico M-X-HB-PTS-AIR High Pressure Stainless Pigtail Medical Air
The Amico stainless steel pigtails have a core which consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid. The braid incorporates a type 304 full hard drawn stainless steel wire. It consists of a 1/4″ nominal I.D. The Amico stainless steel pigtails come with a check valve equipped to one of the ends.
Features:
- Burst pressure rating at room temperature: 12,000 psig
- Maximum 3000 psig working pressure on tubing
- All pigtails 100% tested before shipping and labelled for gas service and pressure rating
- Standard length 36″ (3′), length is customizable
- Includes a sticker that indicates the direction of the flow
HIGH PRESSURE STAINLESS PIGTAIL SPEC SHEET
