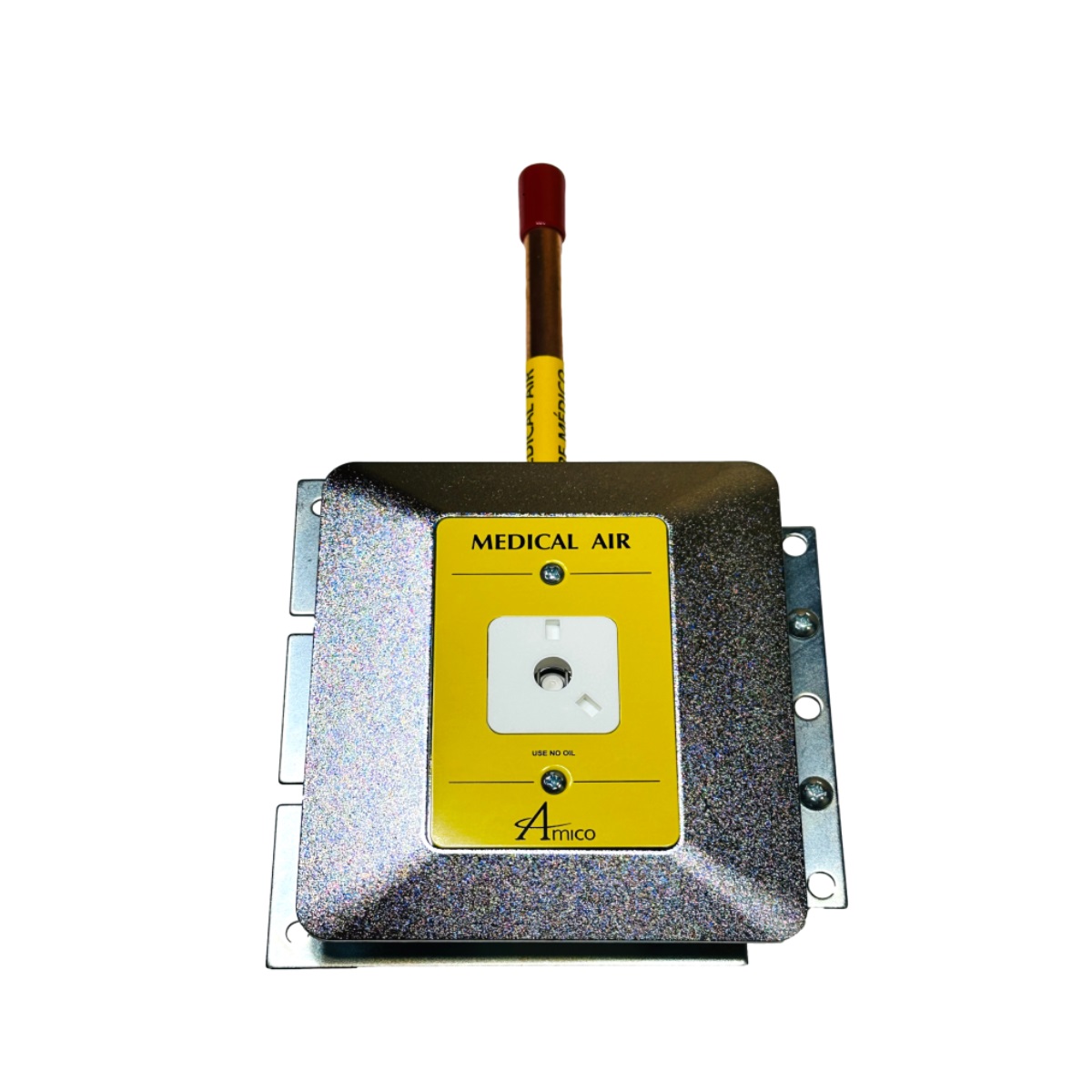

Amico O-QDWAL-U-AIR Medical Air Ohmeda Complete Wall Outlet Assembly
Outlets are manufactured with a 7-3/4″ (197 mm) length type K 1/2″ (12.7 mm) outside diameter (3/8″ [9.5 mm] nominal) size copper inlet pipe stub, which is silver brazed to the outlet body. The body is made of 1-5/16″ (33 mm) diameter, one piece brass construction. For positive pressure gas services, the outlet should be equipped with a primary and secondary check valve and the secondary check valve should be rated at a maximum of 200 psi (1,379 kPa) in the event the primary check valve is removed for maintenance. Outlet bodies are gas specific by indexing each gas service to a gas specific dual pin indexing arrangement on the respective identification module.
All outlets are cleaned and degreased for medical gas service, factory assembled and tested.
FEATURES:
- Medical Air Ohmeda Connection
- 1/2″ (12.7mm) O.D. (3/8″ [9.5 mm] nominal) type ”K” copper pipe rotates 360 deg. for entry from any angle
- 200 PSI Max Pressure Rated
- Cleaned for Medical Air Service
- Flow rate exceeds the requirements of NFPA and CSA
- Accepts quick connect gas specific adapters, or DISS Adapters depending on which front assembly is ordered
- 100% Pressure testing of each outlet and cleaned for medical gas service
- Indexed to eliminate interchangeability of gas services
- Up to 1″ (25 mm) wall thickness adjustment
- Universal rough-in assembly to accept Quick Connects or DISS front adapters. (Can be interchanged at any time)
- Outlets are also available for M.R.I. use
