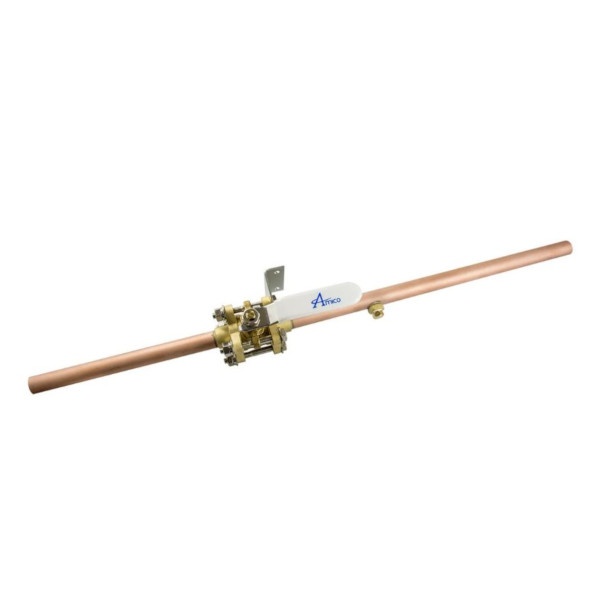

Amico W-ISO-GL-07 Ball Valve Extension Locking
- 3/4″”
The valve is a 3 piece ball-type design with a brass forging body and a chrome-plated brass ball for sizes 1/2″ to 2-1/2″ (1.3 cm – 6.3 cm). Ball seats, stem seals and stem washer is reinforced Teflon (PTFE), with Viton stem and flange O-rings. A blow-out proof stem is used and the valve has a maximum pressure
rating of 600 psi [4,137 kPa].
Valves are operated by a lever-type handle requiring only a quarter turn from a fully open position to a fully closed position. Ball valves are equipped with type K washed and degreased copper pipe stub extensions at both the inlet and outlet sides of the valve port to facilitate installation.
Valves are designed in such a manner that it can be swung out during installation so as to prevent damage due to heat transfer during the brazing operation.
Each valve assembly is washed and degreased for medical gas service. Pipe stub extensions are capped at both ends. The valve shall be supplied in a sealed plastic bag to prevent contamination prior to installation.
Features:
- 3 piece design for ease of maintenance
- 100% Pressure tested
- Cleaned for medical gas service
- Blow-out proof stem
- Available in sizes 1/2″ to 2-1/2″ (1.3 cm – 6.3 cm)
- Full-Port design
- Available in locking or non-locking
