Description

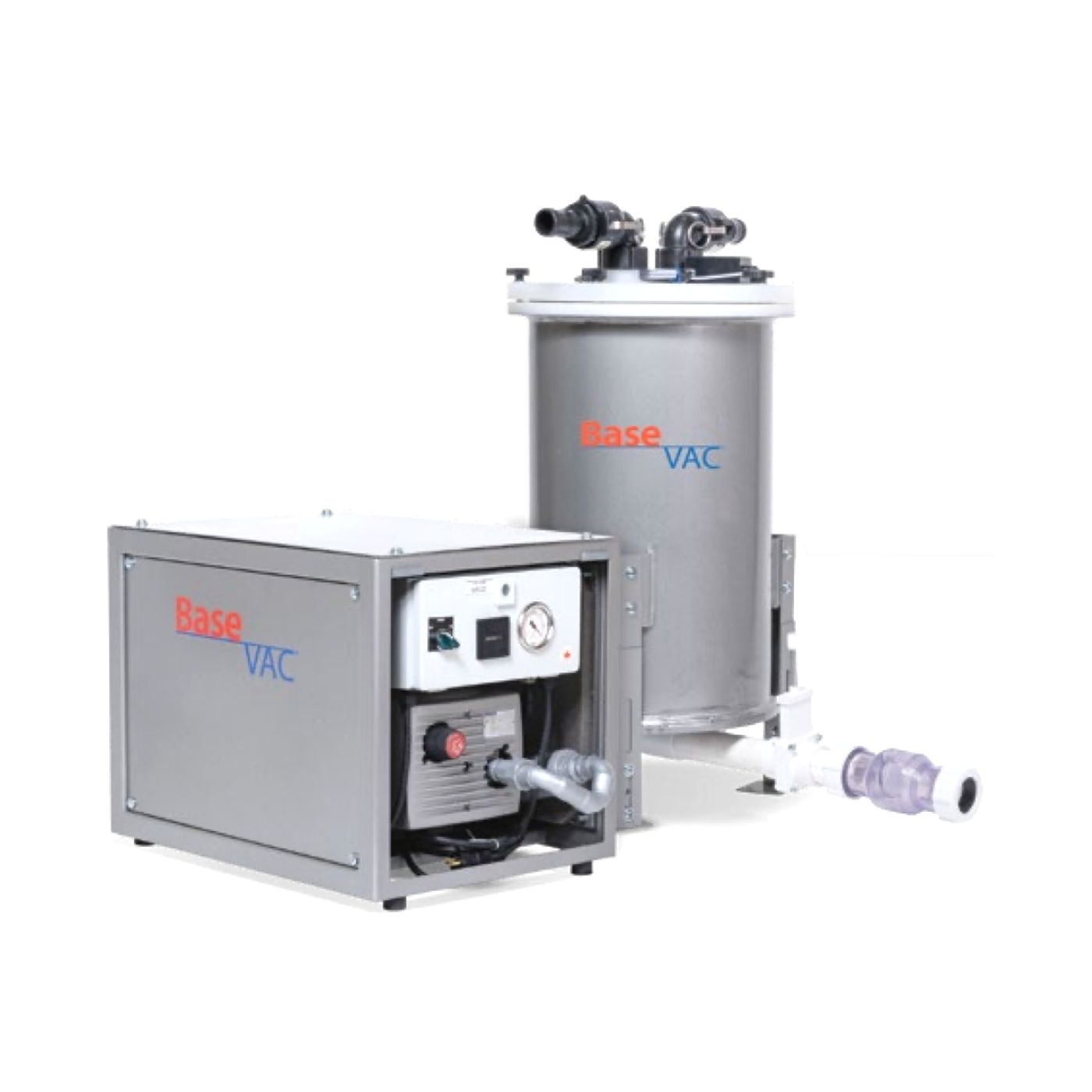

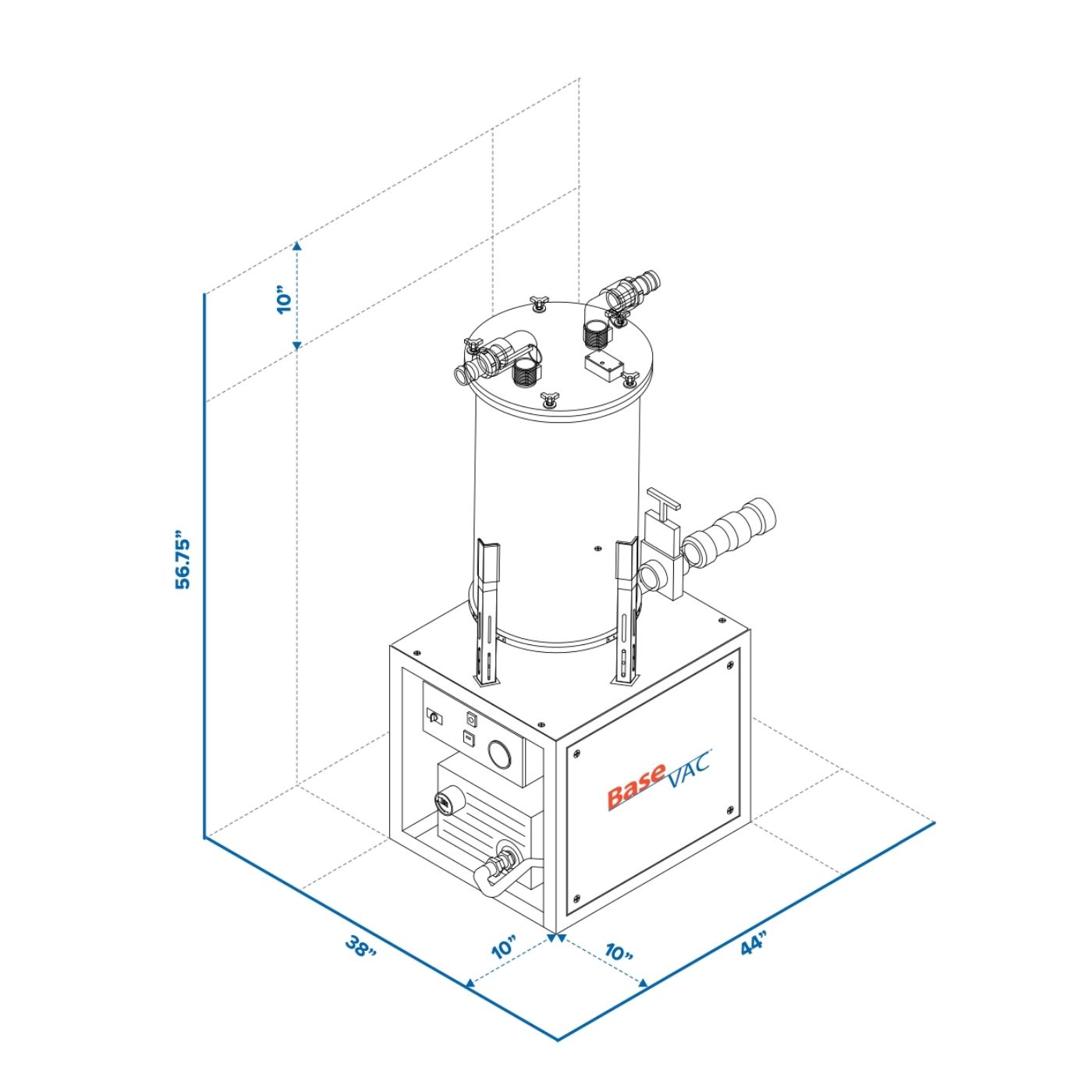

BaseVac D-1HD4.40P Vacuum Pump System
- 2 HP, 230V
- Single Phase System w/ Air & Water Separation

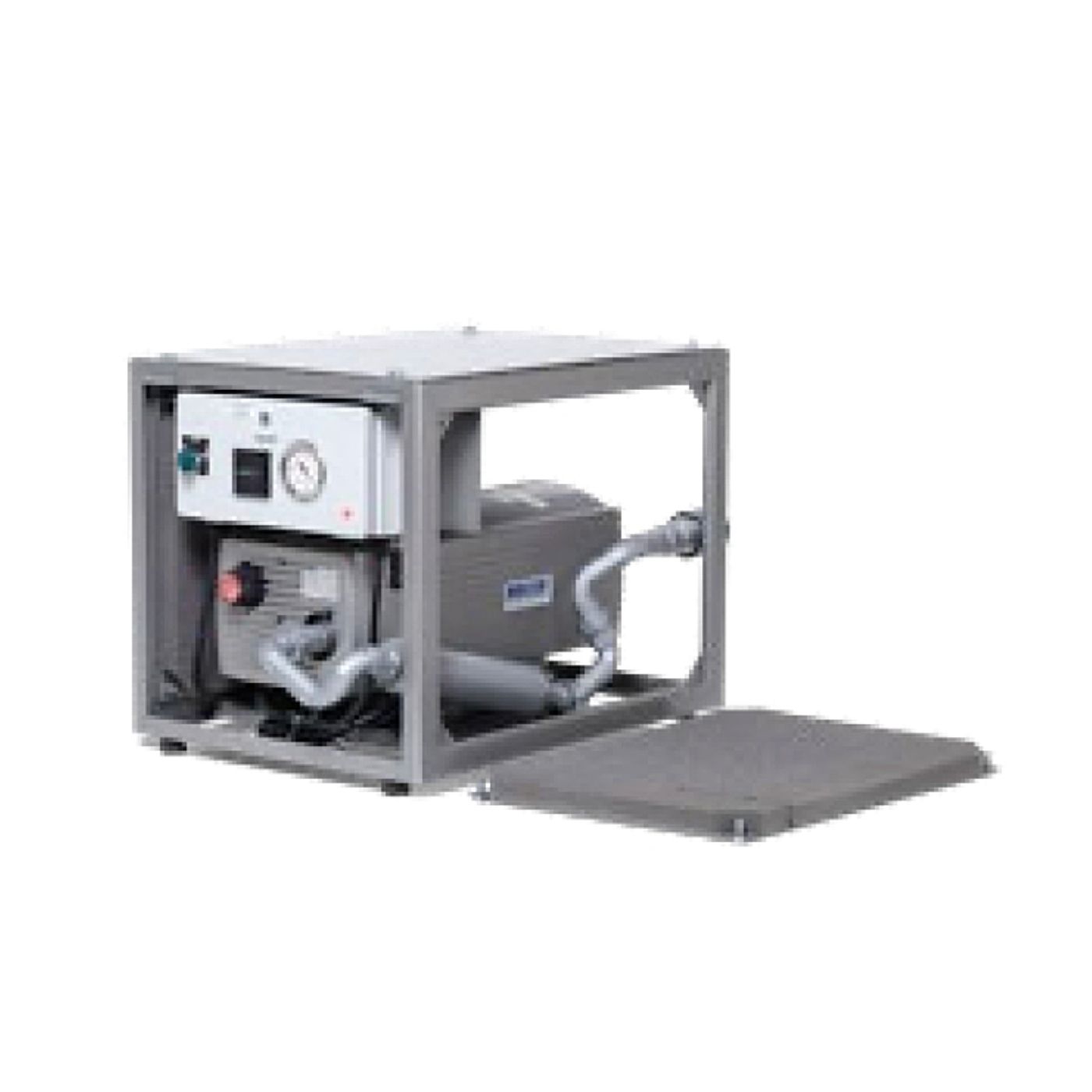

- Removable sides for easy access set- up and service
- Exhaust silencer for quiet operation at 64 DBA
- Adjustable tank legs from 5-14” to fit any drain
- Max (HV) Users: 4
- Operatories: 4-6
- Hg: 5” – 25”Hg
- Power (HP): 2
- Power (AMP): 9.5
- Voltage: 220 V , 1 Phase
- Noise Level (DBA): 66

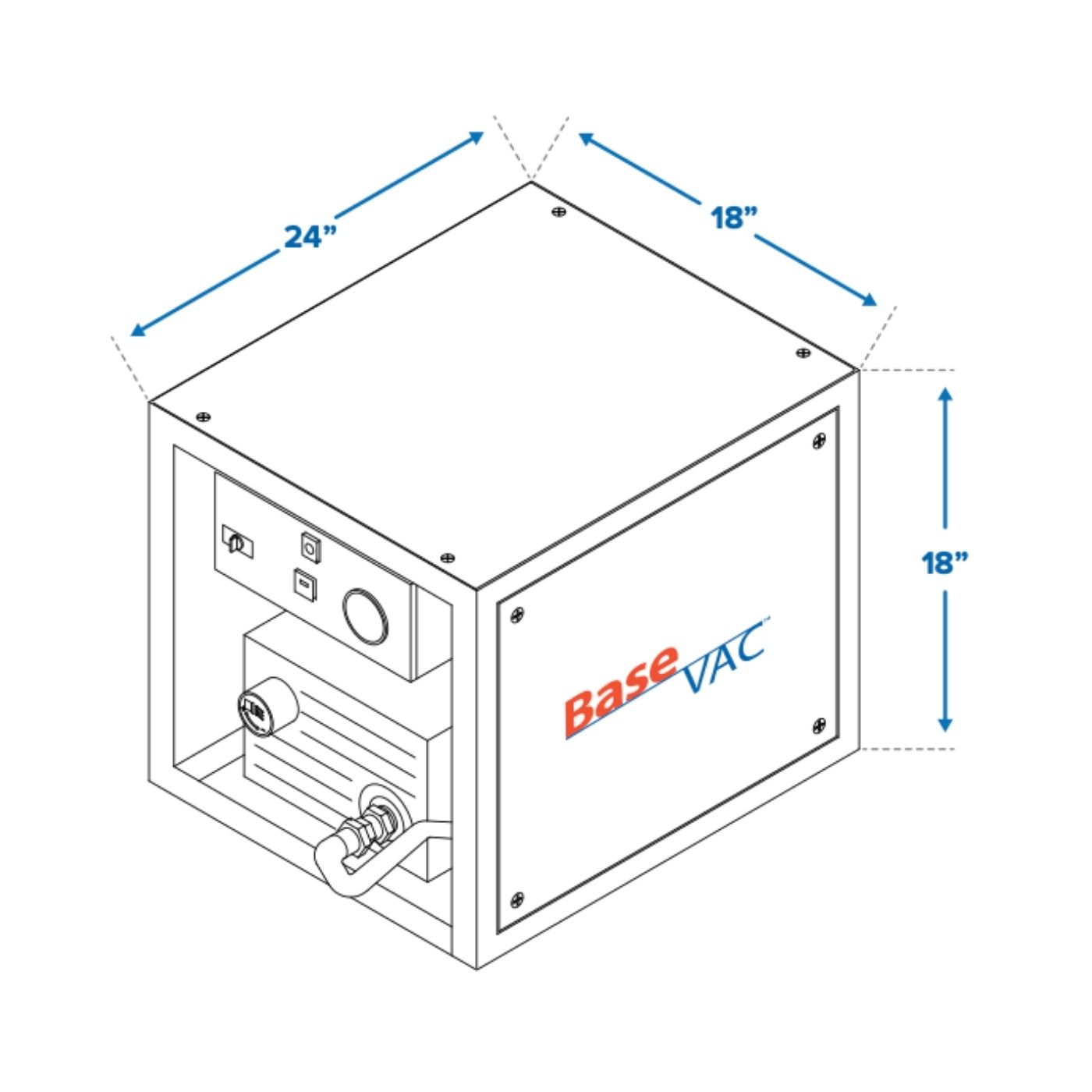

- Vacuum Dimensions: L 26” x W 18” x H 19”
- Vacuum Weight: 142 lbs

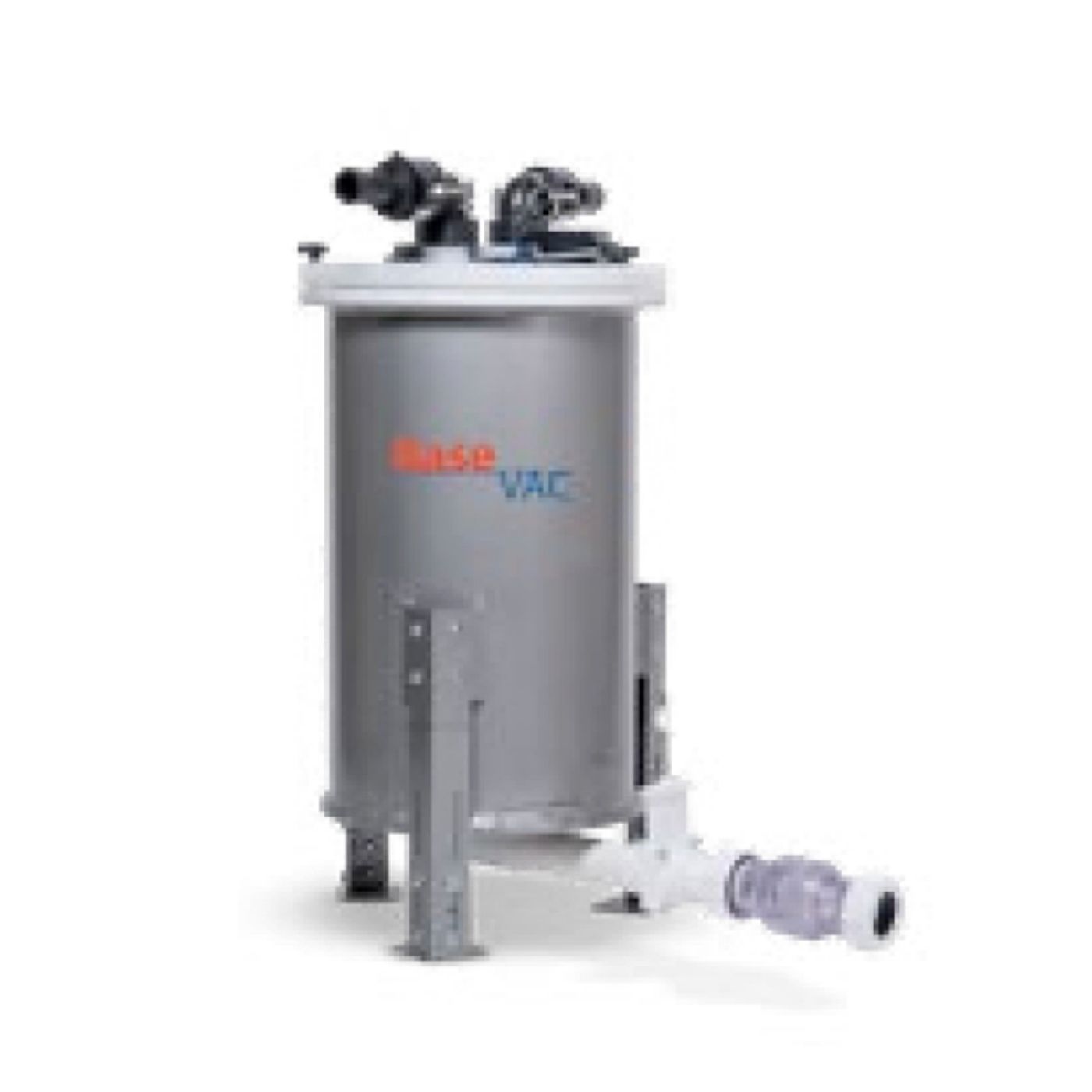

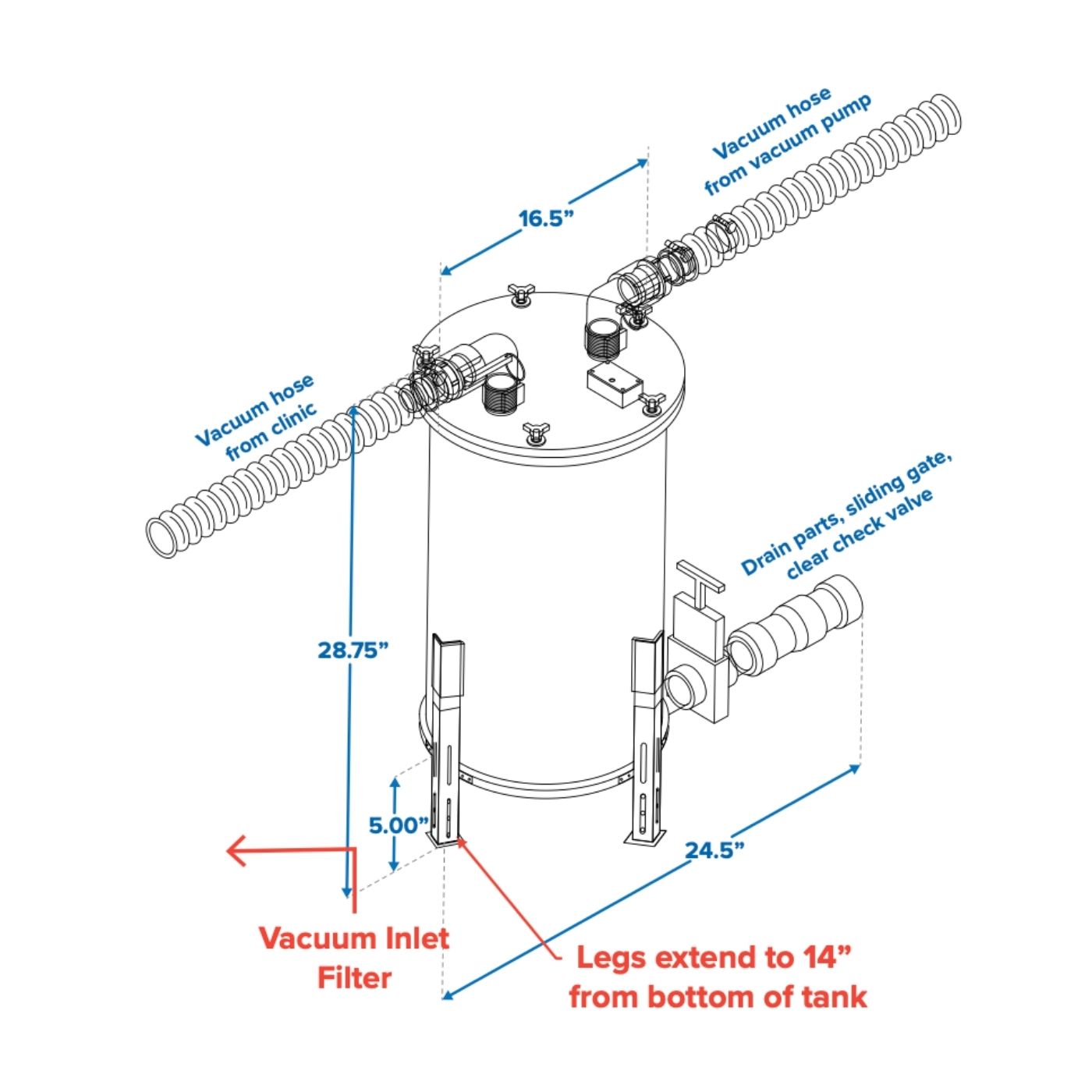

- Tank Dimensions: L 24” x W 16.5” x H 34”
- Tank Weight: 38 lbs
Package Includes:

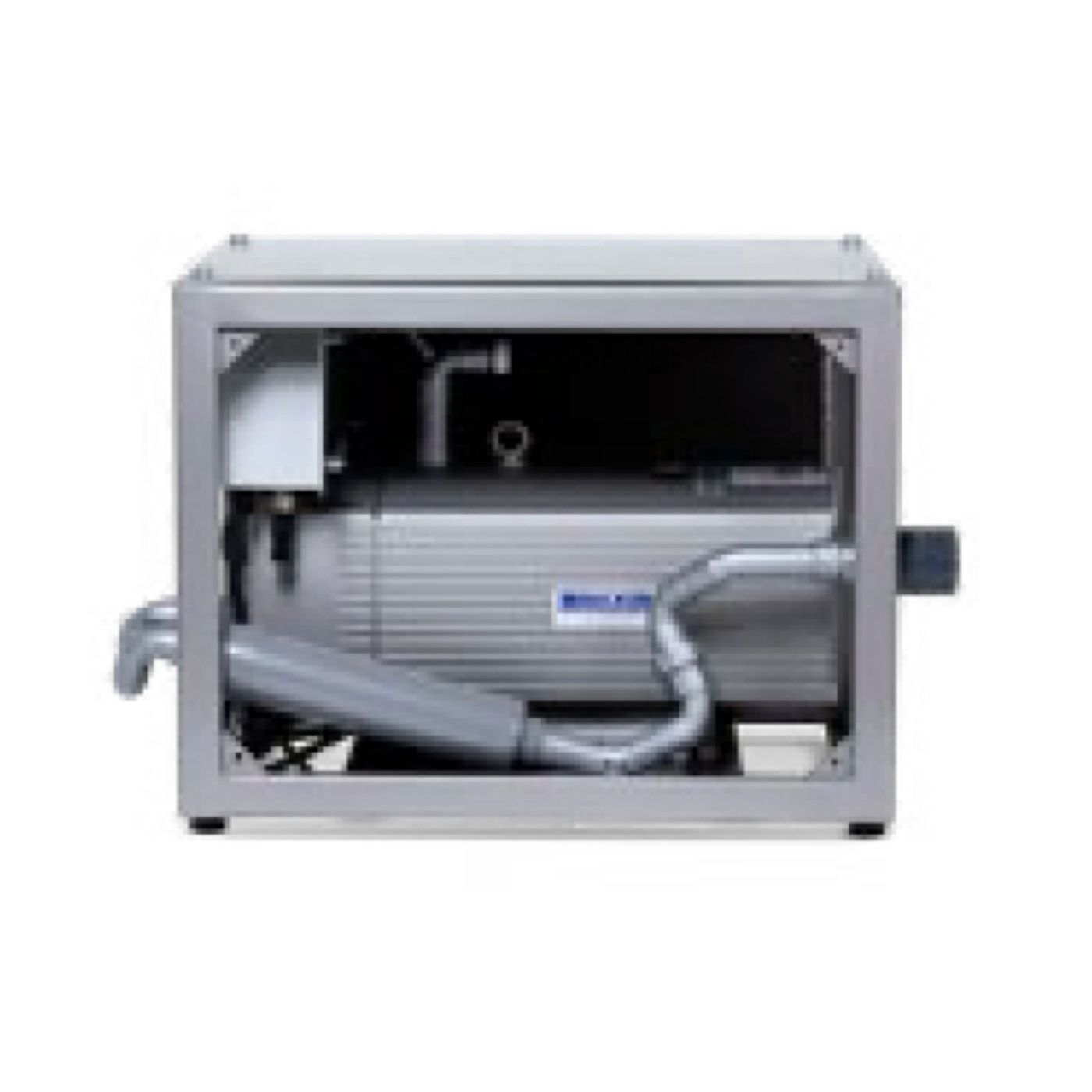

• Oil Free Dry Vacuum Pump
• All Plastic Auto Drain Air/Water Separator Tank • Inlet FilterKit
• Exhaust Kit With Drip-leg Piping
• Adjustable Bypass Vacuum Regulator
• Voltage Control Buck/Boost Transformer
