Description

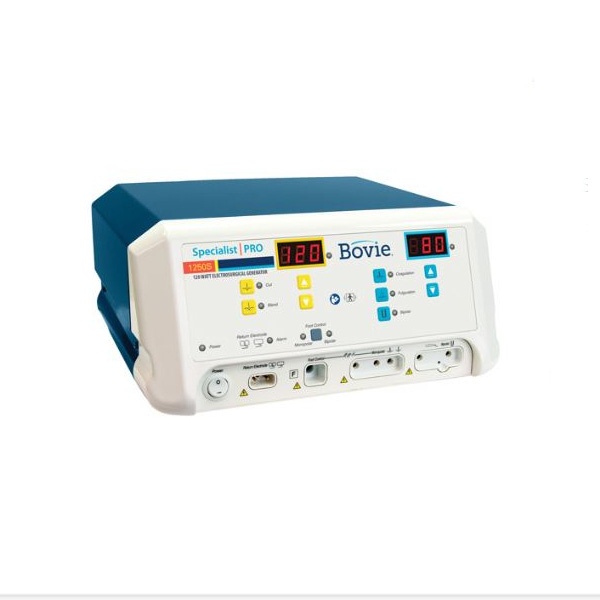

Bovie A1250S-V Specialist PRO Veterinary High Frequency Electrosurgical Generator
The Bovie Specialist PRO is the affordable solution for the busy physician office or specialty facility. The multi-purpose unit features a modern push button design and is capable of most monopolar and bipolar surgical procedures. The Specialist PRO offers 5 energy outputs with up to 120 watts of power; modalities include Cut, Blend, Coagulation, Fulguration and Standard Bipolar. The unit is designed with dependable safety features like BovieNEM (Neutral Electrode Monitoring) pad sensing technology, BovieDED (Digital Error Detection), audible alert tones and self-test circuits. The Bovie Specialist PRO satisfies the physician?s electrosurgical needs with safety, reliability and convenience.
| MONOPOLAR | OUTPUT POWER |
OUTPUT FREQUENCY |
REPITITION RATE |
OPEN CIRCUIT VPEAK MAX |
CREST FACTOR* (RATED LOAD) |
|---|---|---|---|---|---|
| Cut | 120 W @ 500 Omega | 357 kHz – 50 kHz | N / A | 1250V | 2.9 – 20% |
| Blend | 90 W @ 800 Omega | 357 kHz – 50 kHz | 30 kHz – 5 kHz | 1850V | 3.3 – 20% |
| BIPOLAR | OUTPUT POWER |
OUTPUT FREQUENCY |
REPITITION RATE |
OPEN CIRCUIT VPEAK MAX |
CREST FACTOR* (RATED LOAD) |
|---|---|---|---|---|---|
| Coagulation | 80 W @ 1000 Omega | 475 kHz – 19 kHz | 57 kHz – 5 kHz | 3300V | 5.5 – 20% |
| Fulguration | 40 W @ 1000 Omega | 410 kHz – 50 kHz | 25 kHz – 5 kHz | 3900V | 7.7 – 20% |
| Bipolar | 30 W @ 200 omega | 520 kHz (-14 kHz, 29 kHz) |
32 kHz – 5 kHz | 1200V | 6.9 – 20% |
*an indication of a waveform?s ability to coagulate bleeders without a cutting effect
Included:
A1250S-V Electrosurgical Generator – 1
ESP1 Sterile Disposable Pencil – 1
ES01 Blade Sterlie Desposable Electrode – 1
ES02 Needle Sterile Disposable Electrod – 1
ES20 Ball sterile Disposable Electrode – 1
ESRE Disposable Split Return electrodes – 5
A1252C Reusable Grounding Cord – 1
110 VAC Hospital-Grade Power Cord – 1
220 VAC Hospital-Grade Power Cord – 1
Line Voltage:
A1250S-V: 100-240 VAC
Line Frequency:
50 – 60 Hz
Dimensions:
W 26cm (10.25 in.)
H 15.2cm (6 in.)
D 30.5cm (12 in.)
Click Here for SpecialistPRO Brochure
Click Here for SpecialistPro User Guide
*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.
