Description

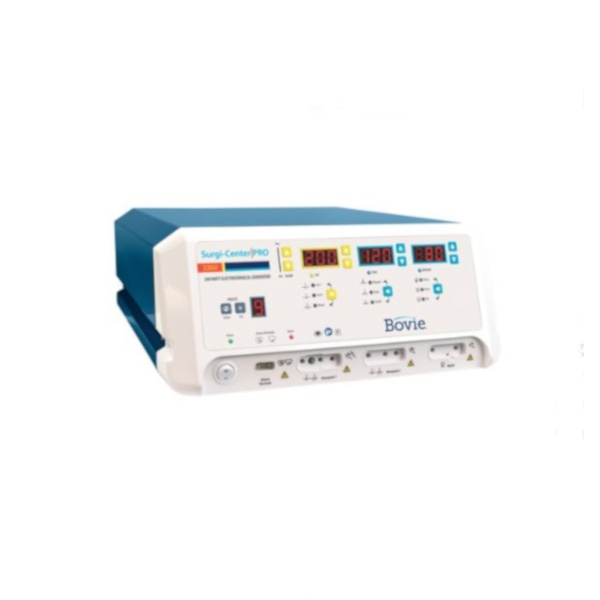

Bovie A2350 Surgi-Center PRO Electosurgical Generator
The Bovie A2350 Surgi-Center PRO Electosurgical Generator is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at a significant savings to your medical facility. The system delivers 12 mono-polar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Bovie Surgi-Center PRO includes technology? such as BovieNEM return split pad contact quality monitoring, BovieFDFS tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. The Bovie Surgi-Center PRO is supported by an unprecedented 4-year standard warranty.
Package Includes:
- Bovie Surgi-Center PRO
- Electrosurgical Generator
- 110 VAC Hospital-Grade Power Cord (15ft.)
- 220 VAC Hospital-Grade Power Cord (15ft.)
- User’s Guide in CD Format (MC-55-232-001)
Technical Specifications:
- Audible/Visible Output Meter: Yes
- Contact Monitoring Systems: BovieNEM™
- Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
- Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Pre-set Feature: Yes
- Mono-polar HP Ports: 2
- Dual Activation Tone Alert: Yes
- Connector Ports/Power Switch: White
- Weight: <9.07 kg (<20 lbs)
- Dimensions: W – 37.5 cm (14.75 in) H – 16.5 cm (6.5 in) D – 46 cm (18.1 in)
- Warranty: 4 years, Additional Warranty Available
| MONO-POLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 200 | 1000V | 1.7 20% | 490 kHz 4.9 kHz |
| Cut II? | 200 | 750V | 1.7 20% | 490 kHz 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 20% | 490 kHz 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 20% | 490 kHz 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 20% | 490 kHz 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 20% | 490 kHz 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 20% | 490 kHz 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 20% | 490 kHz 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 80 | 600V | 1.5 20% | 490 kHz 4.9 kHz |
| Micro Bipolar | 80 | 500V | 1.5 20% | 490 kHz 4.9 kHz |
| Standard Bipolar | 50 | 250V | 1.5 20% | 490 kHz 4.9 kHz
|
Audible/Visible Output Meter:
Yes
Contact Monitoring Systems:
BovieNEM?
Contact Monitoring Systems
Range/Trip Point:
10 ohms or less over entire
operating range (10C to 40C)
Cooling System:
Passive Cooling
Technology:
Isolated RF Output
Yes
Monopolar HP Ports:
2
Dual Activation Tone Alert:
Yes
Connector Ports/Power Switch:
White
<9.07 kg (<20 lbs)
Dimensions:
W 37.5 cm (14.75 in)
H 16.5 cm (6.5 in)
D 46 cm (18.1 in)
Warranty:
4 years, Additional Warranty Available
Click Here for SurgiCenterPRO Brochure
Click here for SurgicenterPRO User Guide
