Description

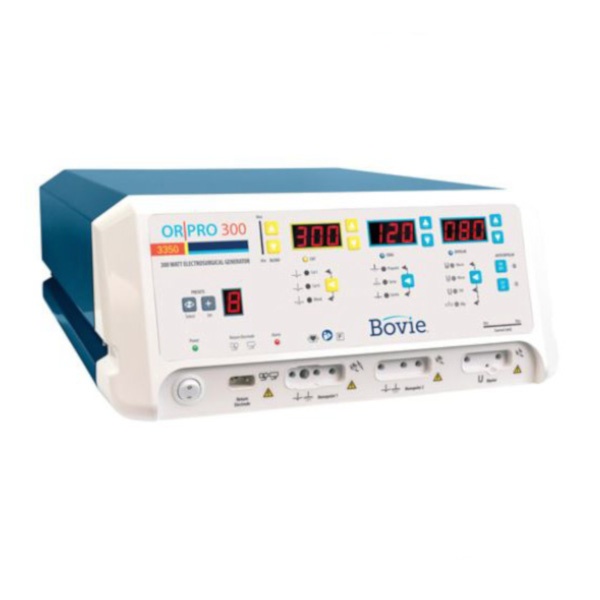

Bovie A3350-V OR PRO Veterinary Electro Surgical Generator
The Bovie A3350-V OR PRO Veterinary Electro Surgical Generator offers 300 watts of power to facilitate large animal surgical procedures. This innovative energy-based device offers 13 modes of surgical energy delivery. The unit is intended for cutting, coagulation, and ablation of a variety of tissues. The Bovie A3350-V OR PRO Veterinary Electro Surgical Generator is engineered to meet operating room demands with safety, reliability and precision.
- Tissue sensing AutoBipolar feature automatically activates and delivers bipolar energy without the use a footswitch.
- Bovie FDFS technology measures tissue impedance 5,000,000 times a second and adjusts output 5,000 times a second for consistent energy delivery in a variety of tissues.
- Unique to the Bovie 3350-V is the Bovie Bipolar (BBP) mode with pulsing bipolar for tissue fusion and aggressive bleeding control.
- The Bovie 3350-V makes switching from Cut to Coag as easy as pushing the button on the ESPR2 reusable electrosurgery pencil.
- The Gentle Coagulation mode provides a safer, more gentle alternative for effective treatment of delicate and sensitive tissues.
- Ten (10) presets for quick, easy, setup, and an additional 6 bipolar specific presets.
TECHNICAL SPECS:
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 300 | 1000V | 1.7 – 20% | 490 kHz – 4.9 kHz |
| Cut II? | 300 | 750V | 1.7 – 20% | 490 kHz – 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 – 20% | 490 kHz – 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 – 20% | 490 kHz – 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 – 20% | 490 kHz – 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 – 20% | 490 kHz – 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 – 20% | 490 kHz – 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 – 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 – 20% | 490 kHz – 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 150 | 600V | 1.5 – 20% | 490 kHz – 4.9 kHz |
| Micro Bipolar | 80 | 450V | 1.5 – 20% | 490 kHz – 4.9 kHz |
| Standard Bipolar | 50 | 300V | 1.5 – 20% | 490 kHz – 4.9 kHz |
| Bovie Bipolar | 225 | 250V | 1.5 – 20% | 490 kHz – 4.9 kHz |
| Auto Bipolar | 80 | 490 kHz – 4.9 kHz |
Audible/Visible Output Meter:
Yes
Contact Monitoring Systems
Range/Trip Point:
10 ohms or less over entire
operating range (10C to 40C)
Cooling System:
Passive Cooling
Technology:
Isolated RF Output
Pre-set Feature:
Yes
Current Meter:
Yes
Monopolar HP Ports:
2
Dual Activation Tone Alert:
Yes
Connector Ports/Power Switch:
White
Weight:
<9.07 kg (<20 lbs)
Dimensions:
W 37.5 cm (14.75 in)
H 16.5 cm (6.5 in)
D 46 cm (18.1 in)
Warranty:
4 years, Additional Warranty Available
Click Here for OR PRO Brochure
Click Here for OR PRO User Guide
*Call to ask about our Quantity Discounts and On-Site Demos on all Bovie items.
Broward A&C Medical is an AUTHORIZED BOVIE DEALER.
We offer FREE PLAN REVIEW!
Email your information to orders@medicalgassupplier.com
