Description

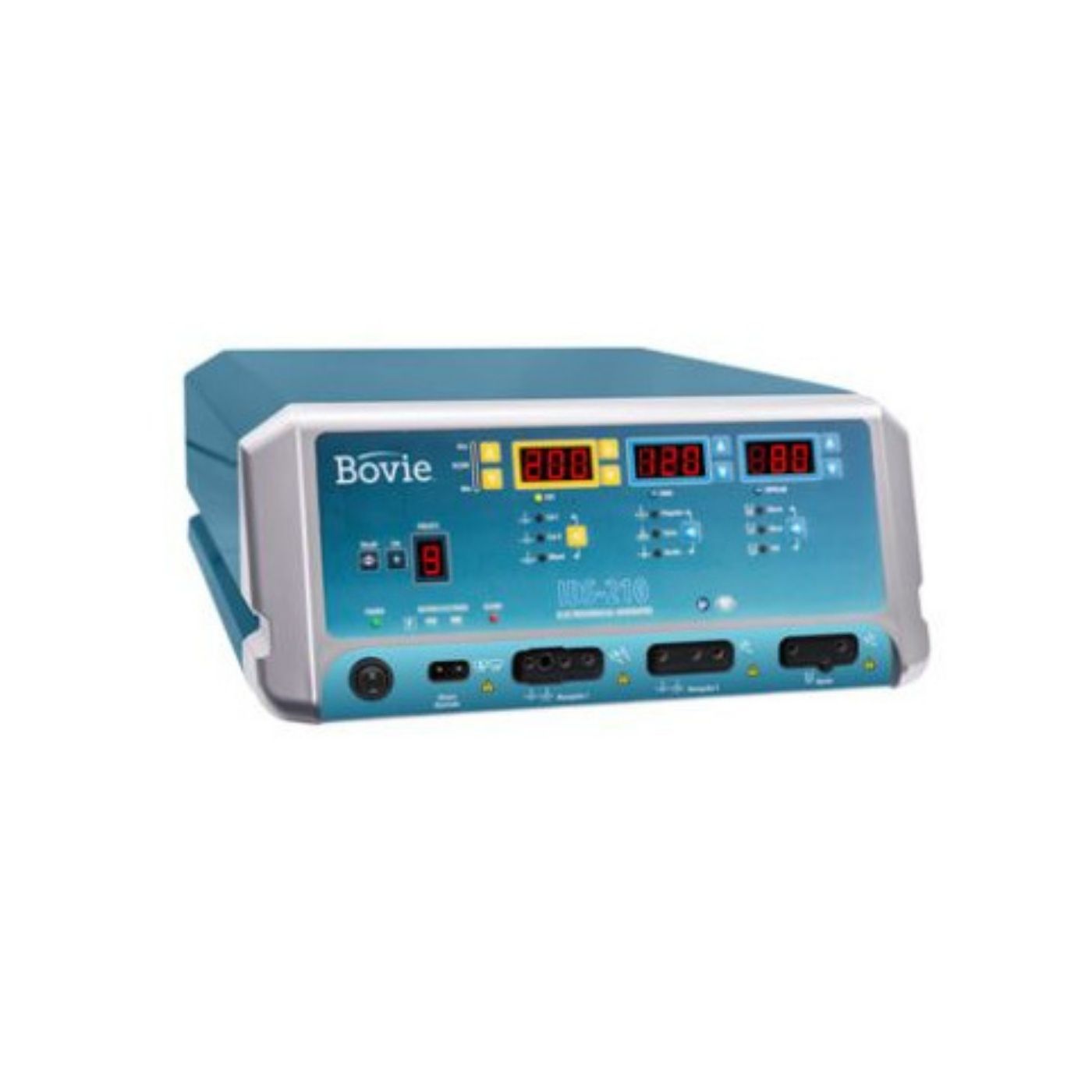

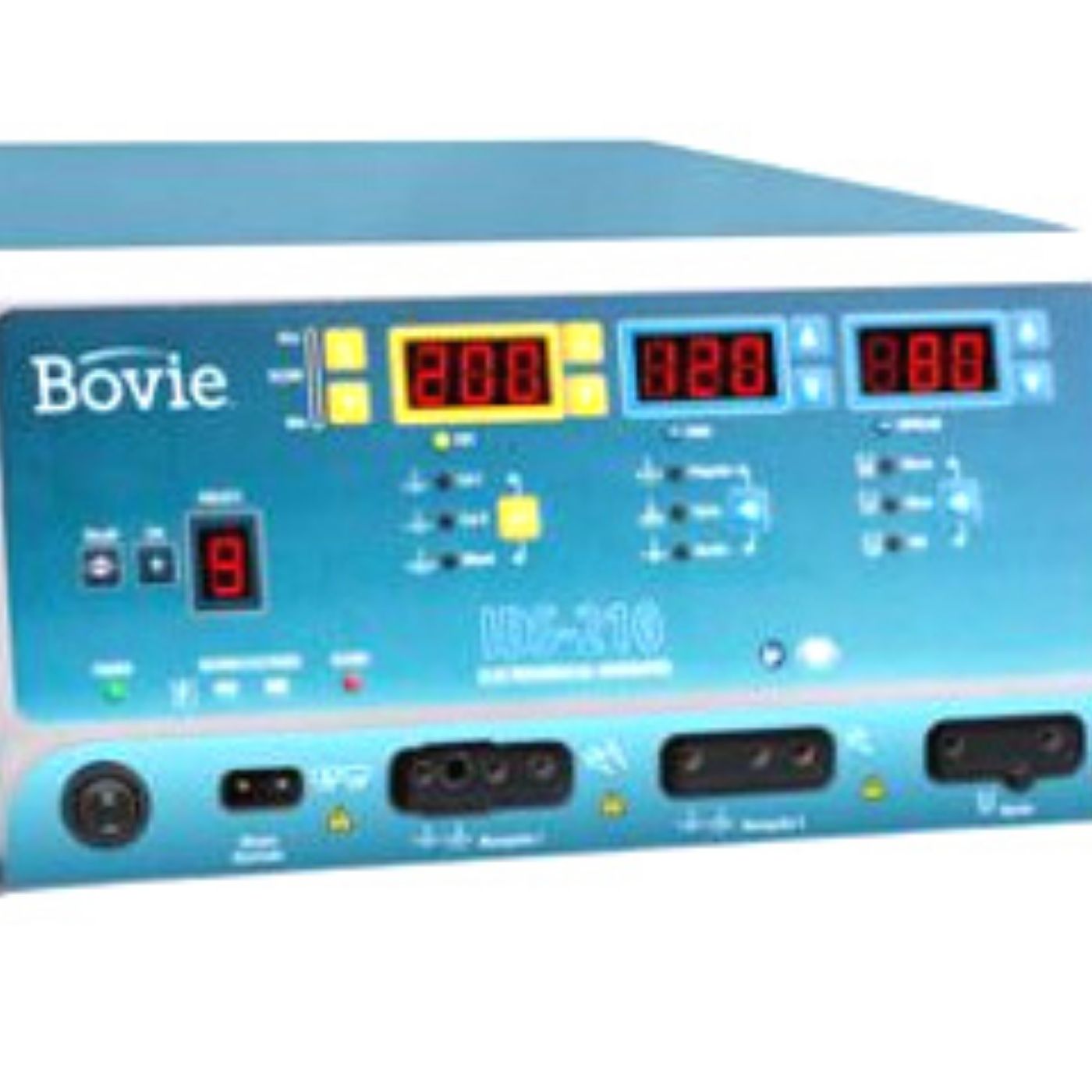

Bovie IDS-210 Electrosurgical Generator
The Bovie IDS-210 Electrosurgical Generator is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at a significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Bovie IDS-210 includes technology such as Bovie NEM return split pad contact quality monitoring, Bovie FDFS tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. The Bovie IDS-210 Electrosurgical Generator is supported by the Bovie unprecedented 4 year standard warranty.
TECHNICAL SPECS:
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 200 | 1000V | 1.7 20% | 490 kHz 4.9 kHz |
| Cut II | 200 | 750V | 1.7 20% | 490 kHz 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 20% | 490 kHz 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 20% | 490 kHz 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 20% | 490 kHz 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 20% | 490 kHz 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 20% | 490 kHz 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 20% | 490 kHz 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 80 | 600V | 1.5 20% | 490 kHz 4.9 kHz |
| Micro Bipolar | 80 | 500V | 1.5 20% | 490 kHz 4.9 kHz |
| Standard Bipolar | 50 | 250V | 1.5 20% | 490 kHz 4.9 kHz |
Contact Monitoring Systems:
BovieNEM
- Contact Monitoring Systems
Range/Trip Point: 10 ohms or less over entire operating range (10C to 40C) - Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Power Display Accuracy: 20% or 5 watts whichever is greater
- Technology: Isolated RF Output
- Pre-set Feature: Yes
- Monopolar HP Ports: 2
- Connector Ports/Power Switch: White
- Box Color: Blue
- Face Plate: White
- Overlay: White
- Weight: <9.07 kg (<20 lbs)
Dimensions:
W 37.5 cm (14.75 in)
H 16.5 cm (6.5 in)
D 46 cm (18.1 in)
Warranty: 4 years, Additional Warranty Available
CLICK HERE FOR IDS-210 BROCHURE
CLICK HERE FOR IDS-210 USER GUIDE
