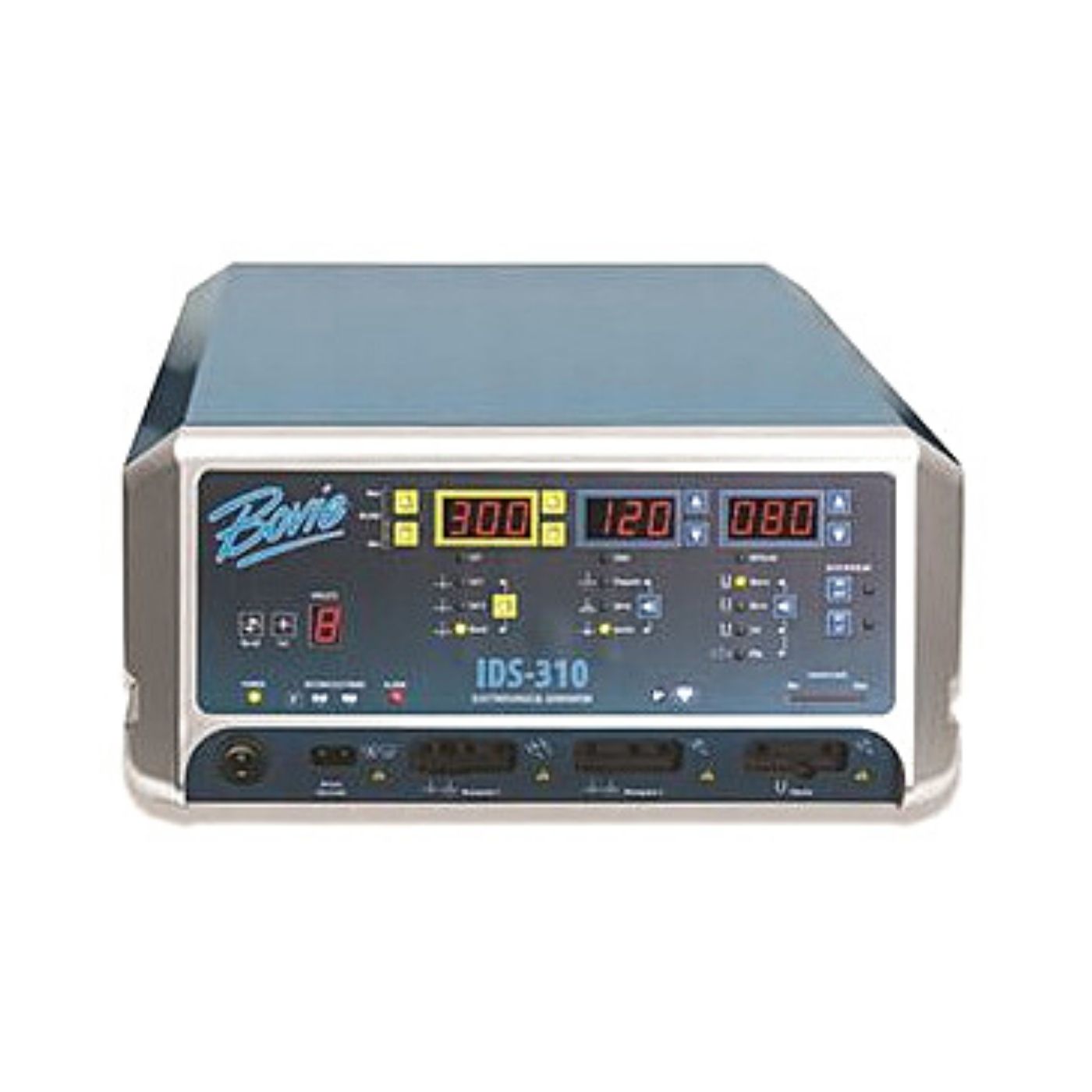

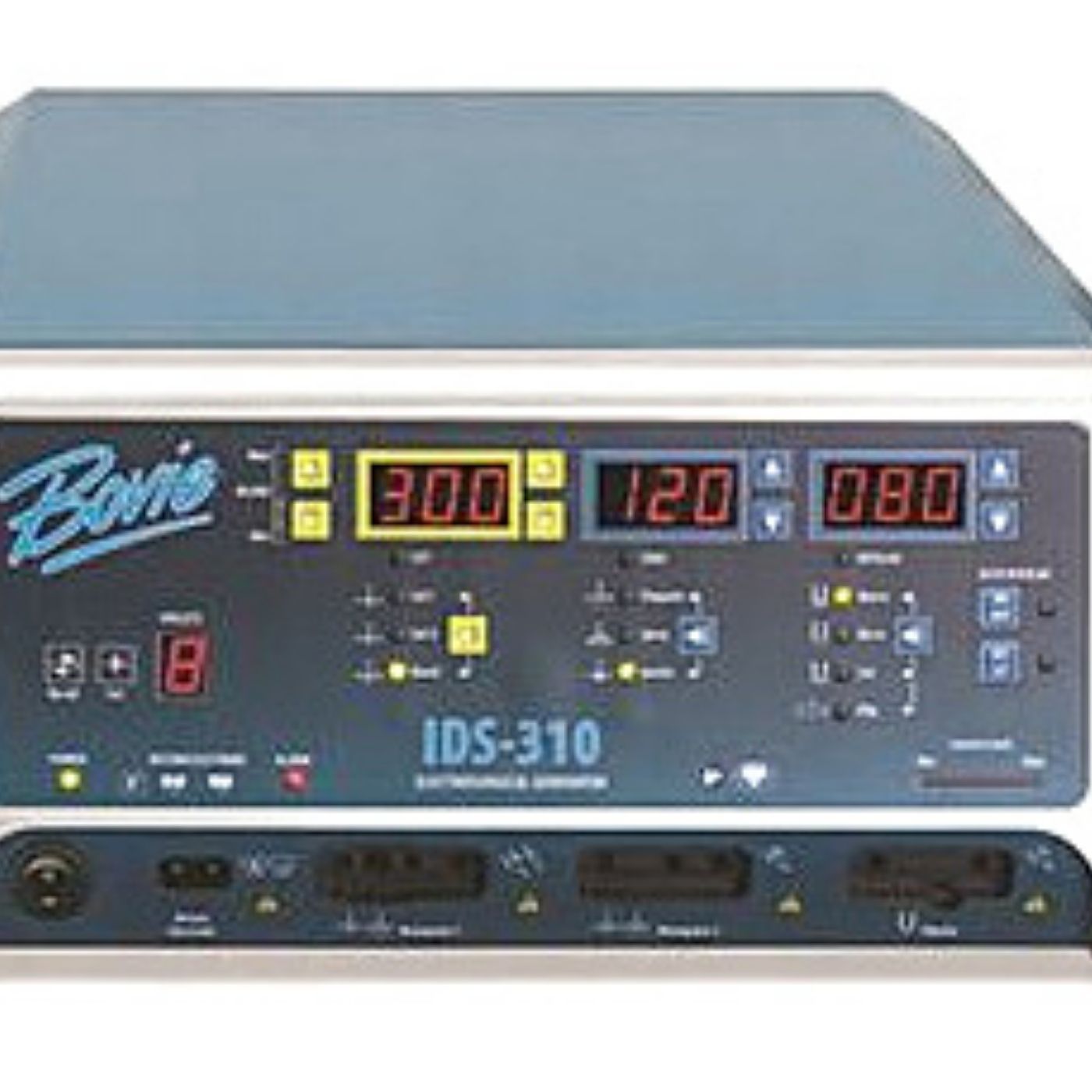

Bovie IDS-310 Electrosurgical Generator
Bovie introduces the IDS-310 Electrosurgical Generator. The system was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery. Special modalities include the advanced Bovie Bipolar, Auto Bipolar options and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for their variety of surgical applications and user preferences.
TECHNICAL SPECS:
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 300 | 1000V | 1.7 20% | 490 kHz 4.9 kHz |
| Cut II | 300 | 750V | 1.7 20% | 490 kHz 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 20% | 490 kHz 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 20% | 490 kHz 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 20% | 490 kHz 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 20% | 490 kHz 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 20% | 490 kHz 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 20% | 490 kHz 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 150 | 600V | 1.5 20% | 490 kHz 4.9 kHz |
| Micro Bipolar | 80 | 450V | 1.5 20% | 490 kHz 4.9 kHz |
| Standard Bipolar | 50 | 300V | 1.5 20% | 490 kHz 4.9 kHz |
| Bovie Bipolar | 225 | 250V | 1.5 20% | 490 kHz 4.9 kHz |
| Auto Bipolar | 80 | 490 kHz 4.9 kHz
|
Contact Monitoring Systems:
BovieNEM
Contact Monitoring Systems
Range/Trip Point:
10 ohms or less over entire
operating range (10C to 40C)
- Cooling System:
Passive Cooling - Technology:
Isolated RF Output - Audible/Visible Output Meter:
Yes - Pre-set Feature:
Yes - Current Meter:
Yes - Monopolar HP Ports:
2 - Dual Activation Tone Alert:
Yes - Connector Ports/Power Switch:
Black - Weight:
<9.07 kg (<20 lbs) - Dimensions:
W 37.5 cm (14.75 in)
H 16.5 cm (6.5 in)
D 46 cm (18.1 in)
