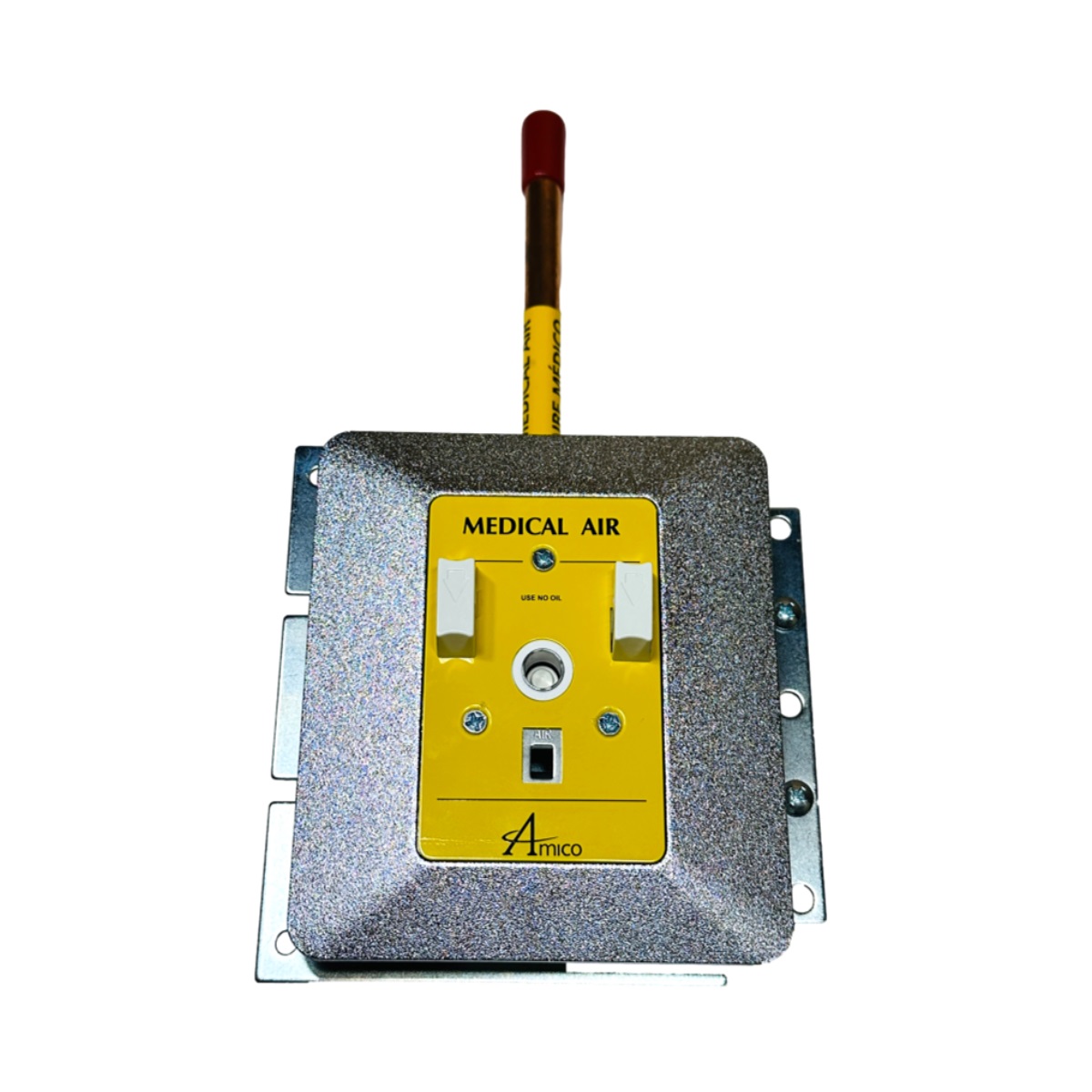

Amico O-CHWAL-U-AIR Medical Air Complete Wall Outlet Assembly

Description

AMICO CHEMETRON MEDICAL AIR COMPLETE WALL OUTLET ASSEMBLY O-CHWAL-U-AIR

The Amico Medical Air Wall Outlet O-CHWAL-U-AIR features a wall thickness adjustment of up to 1 inch. Has a rough-in assembly which allows for Quick Disconnects or DISS Front Adapters. A 360 degree swivel inlet pipe makes installation quick and convenient. The outlet is manufactured with a Type K copper inlet pipe stub that is silver brazed to the body of the outlet.

• Flow rate exceeds the requirements of NFPA and CSA
• Accepts only Ohmeda Diamond™ gas specific adaptors
• 100% Pressure testing of each outlet and cleaned for medical gas service
• Indexed to eliminate interchangeability of gas services
• Up to 1″ (25 mm) wall thickness adjustment
• 360° Swivel Inlet Pipe for easy installation
• Universal Rough-In Assembly to accept Quick Disconnects or DISS Front Adaptors (can be interchanged at any time)
• Outlets are also available for M.R.I. use
