Description
Amico O-DISCON-E-NIT Nitrogen DISS Outlet Station
The medical gas outlet is an Amico Alert-1 series.
Outlets are manufactured with a 7-3/4″ (197 mm) length type ”K” 1/2″ (12.7 mm) outside diameter (3/8″ [9.5 mm] nominal) size copper inlet pipe stub, which is silver brazed to the outlet body. The body is of 1-5/16″ (33 mm) diameter, one piece brass construction. For positive pressure gas services, the outlet is equipped with a primary and secondary check valve and the secondary check valve is rated at a maximum of 200 psi (1,379 kPa) in the event the primary check valve is removed for maintenance. Outlet bodies are gas specific by indexing each gas service to a gas specific dual pin indexing arrangement on the respective identification module.
A large color coded front plate is used for ease of gas identification and aesthetic appeal. A one piece chromed fascia plate frames the outlet. With the back rough-in mounted, the outlet can adjust from 3/8″ (10 mm) to 1″ (25 mm) variation in wall thickness.
The outlets are modular design and include a gas specific 1.6 mm (16 ga.) steel mounting plate designed to permit on- site ganging of multiple outlets, in any order, on 5″ (127 mm) spacing. The latch-valve assembly shall be D.I.S.S. (Diameter Index Safety System) and shall only accept corresponding gas specific adapters.
All M.R.I. outlets are manufactured from nonferrous materials. All outlets are cleaned and degreased for medical gas service, factory assembled and tested. The outlets are UL Listed and ETL listed. Amico products comply with NFPA 99 and CSA Z7396.1.
- Flow rate exceeds the requirements of NFPA and CSA
- Accepts only DISS gas specific adapters
- 100% pressure testing of each outlet and cleaned for medical gas service
- Indexed to eliminate interchangeability of gas services
- Up to 1″ (25 mm) wall thickness adjustment
- 360° Swivel Inlet Pipe for easy installation
- Universal rough-in assembly to accept Quick Disconnects or DISS front adapters (can be interchanged at any time)
- Outlets are also available for M.R.I. use

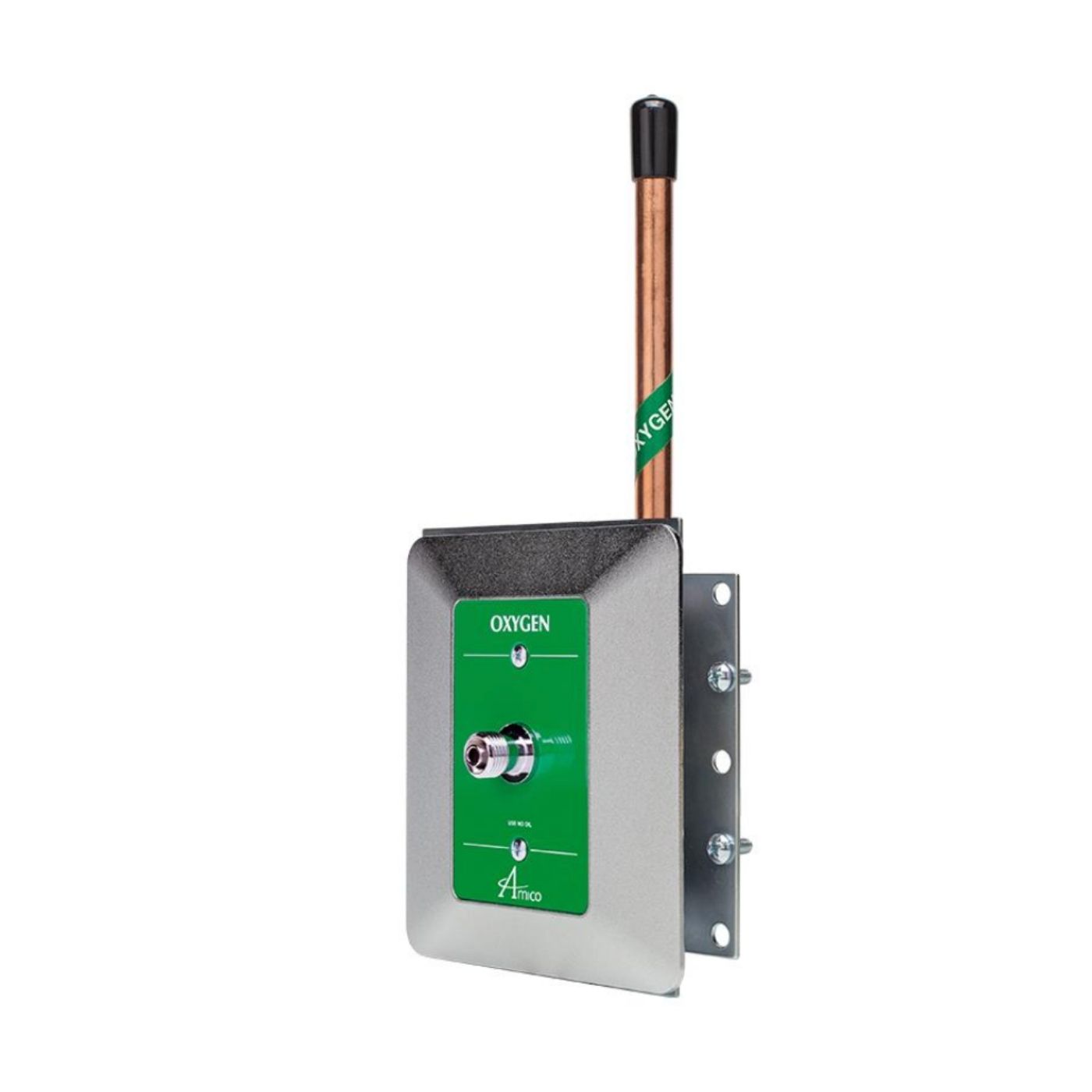

- DISPLAY PHOTO IS OXYGEN, FACEPLATE FOR NITROGEN IS BLACK
