Western Innovator Power Supply WME-8-1

Description

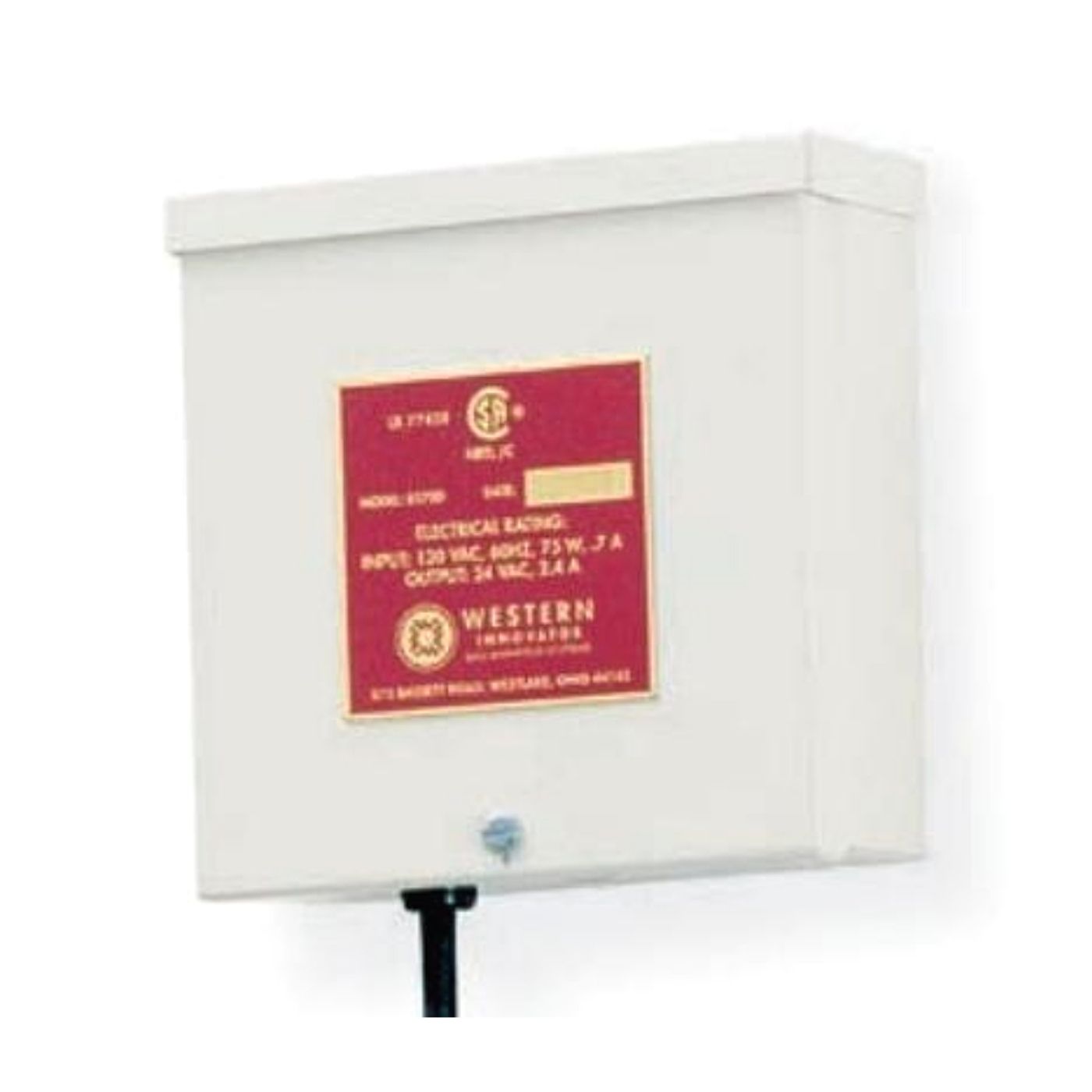

WESTERN INNOVATOR POWER SUPPLY WME-8-1

• Power Supply PCB
• Includes dry contacts for remote alarms
• Connects to standard 115v power source
• Lead Time 10-12 business days

Electrical Instructions:

1. 24 VAC power supply transformer is furnished with the control unit. Mount the box on the wall with the bottom edge approximately at the top of the control cabinet. The attached control cable terminates in a 4-way

   plug matching a receptacle on the bottom of the control panel (Figure 7).

2. After mounting the power supply box to the wall, plug the cable into the control cabinet receptacle.
3. One hole on the underside of the power supply box provides access for conduit and connection of 115 VAC

   power to the black primary leads. Remove 115 VAC power prior to making connections. The other hole on

   the underside of the power supply transformer box provides access for remote alarm connections.

4. After completing the 115 VAC connections, the power supply should be completed and functional and 115

   VAC power can be restored
