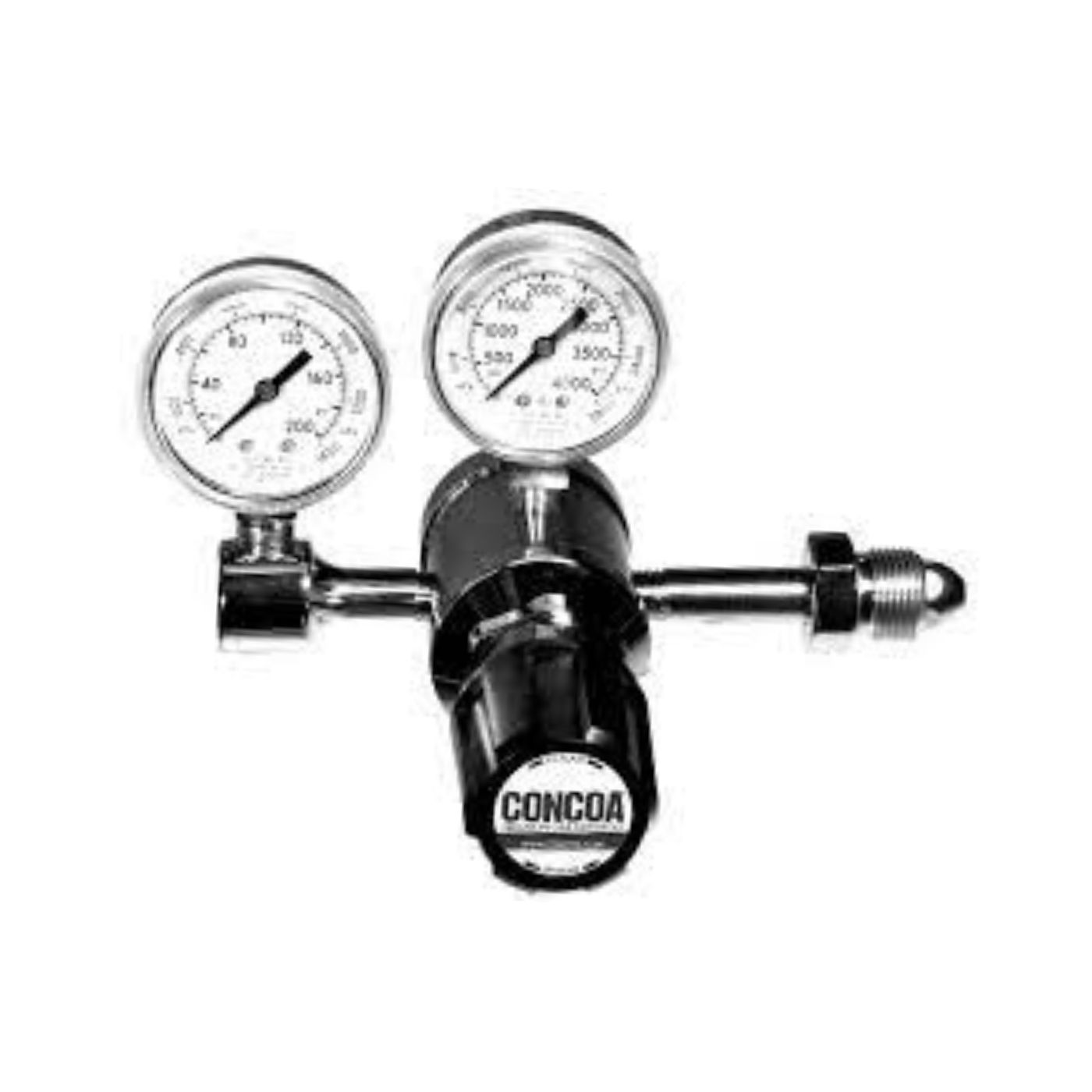

CONCOA 3047021-84-000 SINGLE STAGE REGULATOR
The 304 Series regulators are intended for secondary pressure control of non-corrosive, high purity or liquefied gases or as point of use pressure control in high purity gas distribution systems.
- Single Stage, Chrome-Plated Brass Barstock Body
- Three Port Configuration, 316L Stainless Steel Diaphragm
- Increased serviceability and life, No inboard diffusion
- Minimal purge requirements, Safeguard downstream equipment
- Smooth pressure changes, Easily transported and integrated into system
- Easy installation – Broad range of applications
- Safe use with high pressure cylinders
SPECIFICATIONS:
Maximum Inlet Pressure 3000 PSIG (210 BAR)
Temperature Range -40°F to 140°F (-40°C to 60°C)
Gauges 2″ (53mm) diameter chrome-plated brass
Ports 1/4″ FPT
Helium Leak Integrity 1 x 10-8 scc/sec
Cv 0.1
Weight 1.7 lbs. (0.78 kg)
