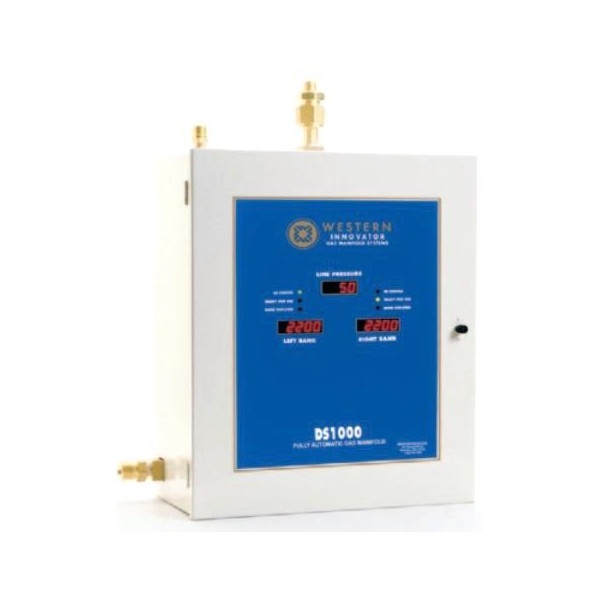

Western DS1000-8-4 Innovator N2O Digital Manifold 4 Cylinders Standard
Western Innovator DS1000 Digital Manifolds provide fully automatic system control. An Integrated Circuit Board monitors cylinder bank pressure electronically, controlling changeover and eliminating the need to manually reset levers or valves. Easy-to-read digital displays show the delivery and individual bank pressures. A series of lights for each bank indicates whether the bank is in service, ready for use, or bank depleted.
- Fully Automatic Digital System – no levers to reset
- CSA Approved Power Source included
- LED Indicators provide system status for each bank. Lights will indicate “in service”, “ready for use”, or “bank depleted”
- Large digital display provides constant readout of bank pressure and delivery pressure
- Displays readout in psig, kPa or Bar
- Micro controller monitors all functions and controls changeover
- Max inlet pressure: 3000 psig
- Delivery Pressure: 40-100 psig
- Max Flow: 2000 scfh
- Manifold Outlet: 1/2″ NPT Male
- Relief Valve Outlet: 1/2″ NPT Male
- 1/2″ Brass, silver brazed headers
- 24″ flexible stainless steel braided pigtails w/ check valves
- Connects to remote alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)
We offer FREE PLAN REVIEW!
Email your information to orders@medicalgassupplier.com
