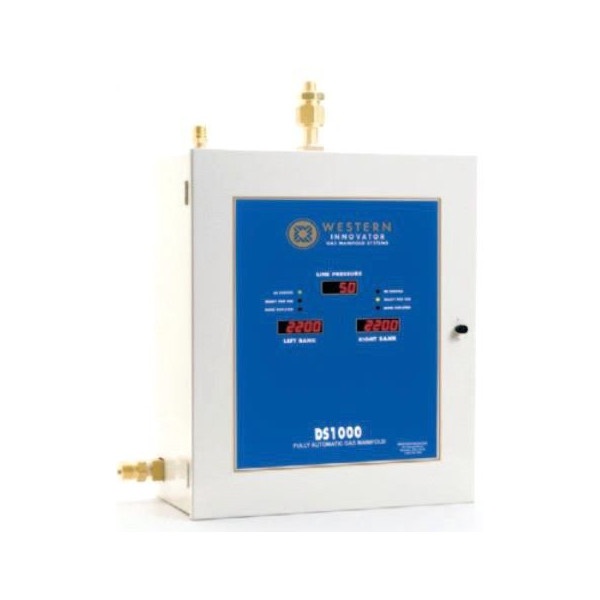

Western DS1000-9-8 Innovator O2 Digital Manifold 8 Cylinders Standard

Description

Western DS1000-9-8 Innovator O2 Digital Manifold 8 Cylinders Standard

Western DS1000-9-8 Innovator O2 Digital Manifold 8 Cylinders Standard provides fully automatic system control. An Integrated Circuit Board monitors cylinder bank pressure electronically, controlling changeover and eliminating the need to manually reset levers or valves. Easy-to-read digital displays show the delivery and individual bank pressures. A series of lights for each bank indicates whether the bank is in service, ready for use, or bank depleted.

• Fully Automatic Digital System – no levers to reset
• CSA Approved Power Source included
• LED Indicators provide system status for each bank. Lights will indicate “in service”, “ready for use”, or “bank depleted”
• Large digital display provides constant readout of bank pressure and delivery pressure
• Displays readout in psig, kPa or Bar
• Micro controller monitors all functions and controls changeover
• Max inlet pressure: 3000 psig
• Delivery Pressure: 40-100 psig
• Max Flow: 2000 scfh
• Manifold Outlet: 1/2″ NPT Male
• Relief Valve Outlet: 1/2″ NPT Male
• 1/2″ Brass, silver brazed headers
• 24″ flexible stainless steel braided pigtails w/ check valves
• Connects to remote alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)
