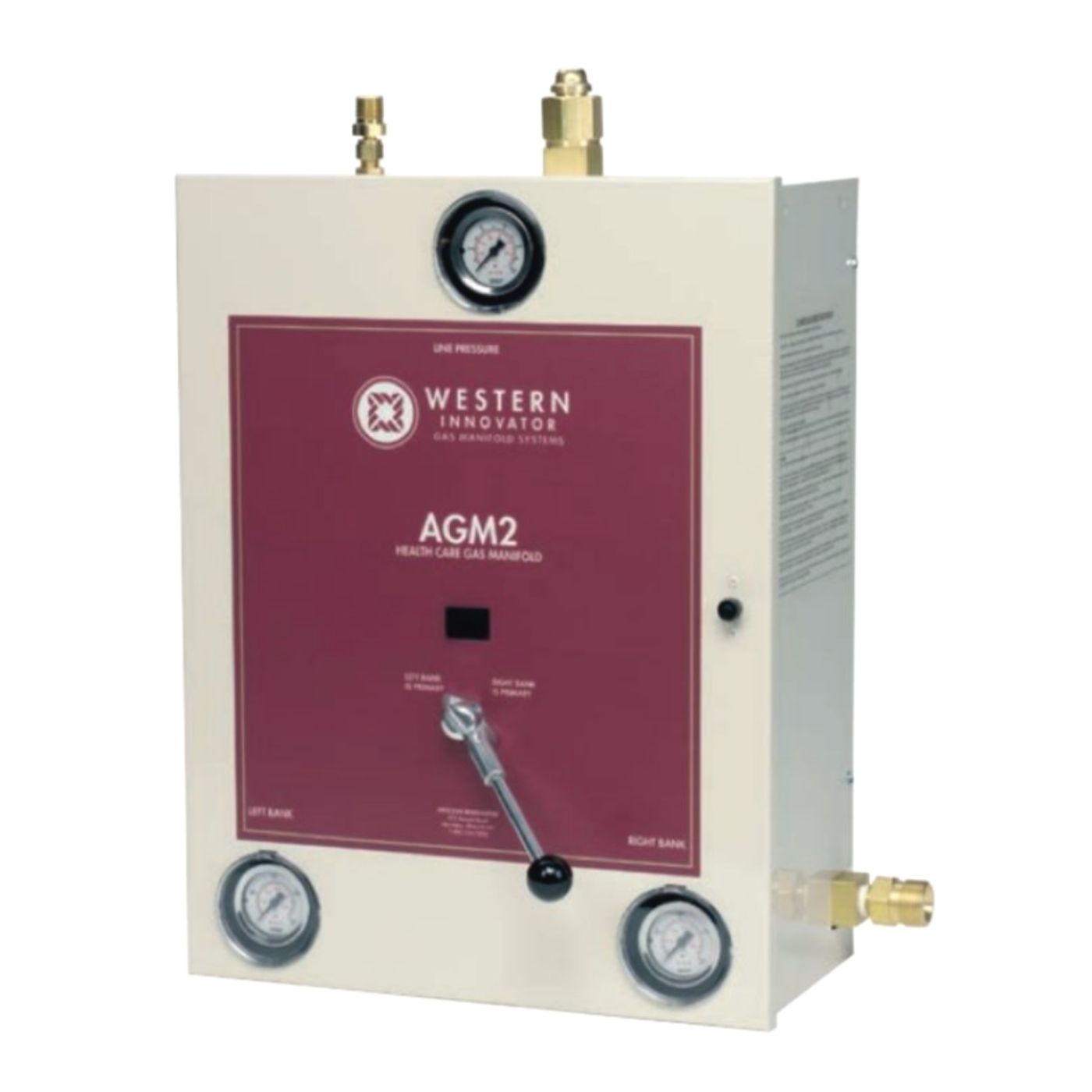

Western Enterprises AGM2-9-4 Automatic Medical Gas Manifold

Western Innovator AGM2 Manifolds are designed and manufactured according to NFPA–99 2012 safety and performance requirements. Easy-to-read analog gauges indicate the line and individual bank pressures.  A green light means the service bank is functioning and the reserve bank is ready for service. A red light alerts the user that one or both banks are depleted. A simple rotation of the control lever resets the unit.

• NFPA Compliant, Automatic Analog System
• CSA Approved Power Supply included
• Maximum inlet pressure: 3000 psig (2000 for CO2 & N2O systems)
• Maximum Flow Rate: AGM2 1200 scfh AGM2 35 scfh (CO2 & N2O) AGM2HL 500 scfh (CO2 & N2O) AGM2HP 1200 scfh
• Internal adjustable dual line regulators AGM2 & AGM2HL 30–55 psig AGM2HP 100–200 psig
• Manifold outlet: 1/2” NPT male
• Relief valve outlet: 1/2” NPT male
• Oxygen Pigtails: NFPA 99 compliant, rigid copper, with check valves Other Gas Pigtails: NFPA 99 compliant, 24” flexible stainless steel with check valves
• 1/2” Brass, silver brazed headers
• Digital readout can display psig, kPa or Bar
• Connects to remote alarms systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)
