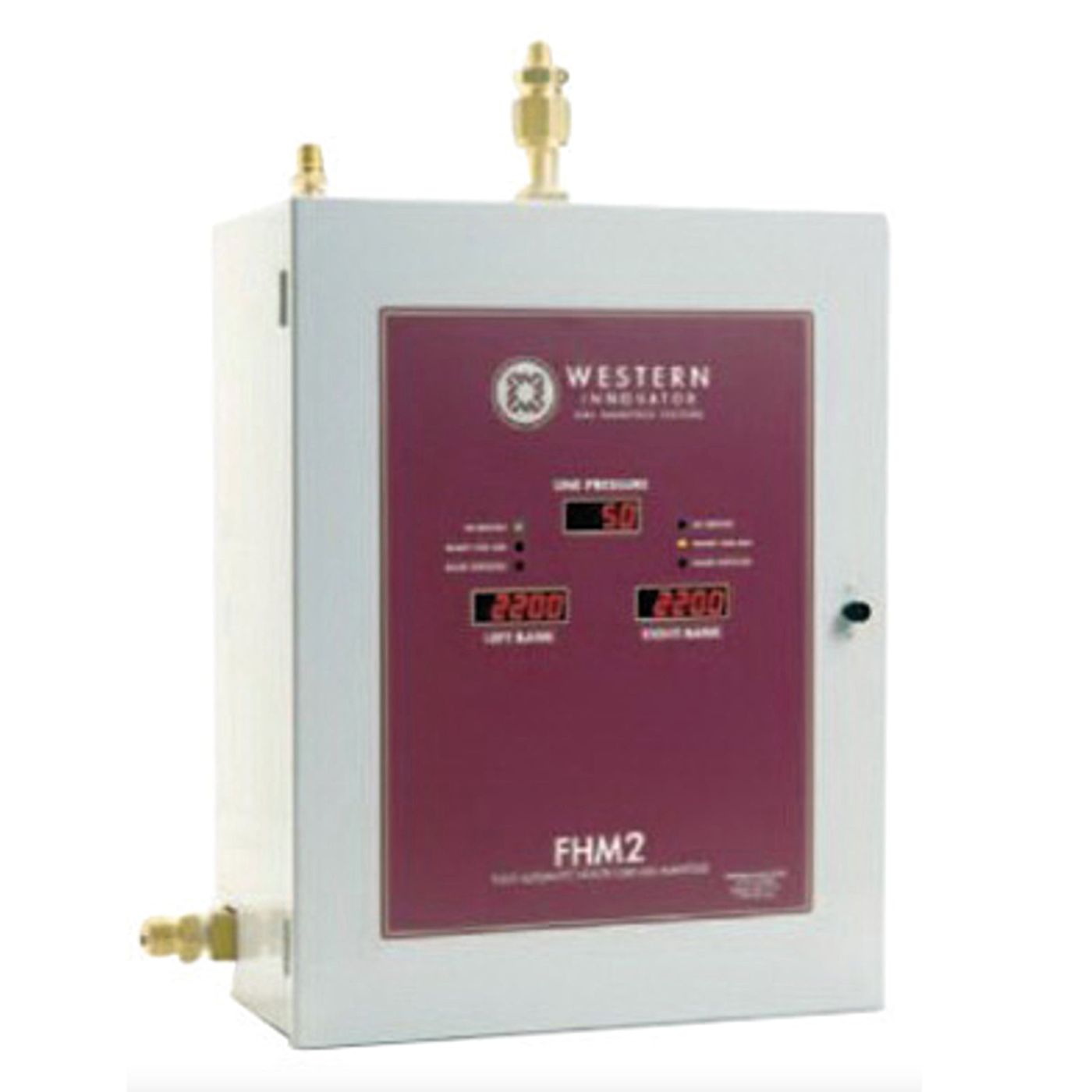

Western Enterprises FHM2-9-2 Fully Automatic Medical Manifold – OXYGEN
Western Innovator FHM2 Healthcare Gas Manifolds provide fully automatic system control. An integrated circuit board monitors cylinder bank pressure electronically, controlling change – over and eliminating the need to manually reset levers or valves.
FHM2 Healthcare Manifolds meet NFPA–99 2012 safety and performance requirements. Easy-to-read digital displays show the line and individual bank pressures. A series of lights for each bank indicates whether the bank is “in service ” , “ ready for use ” , or “ bank depleted ”.
- NFPA Compliant, Fully Automatic Digital System
- CSA Approved Power Supply included
- Maximum inlet pressure: 3000 psig (2000 for CO2 & N2O systems)
- Maximum Flow:FHM2 – 2000 scfh
FHM2 (CO2 & N2O) – 35 scfh
FHM2HL (CO2 & N2O) – 500 scfh
FHM2HP – 3000 scfhInternal adjustable dual line regulators
FHM2 & FHM2HL 30 – 70 psig
FHM2HP 100–190 psig
- Manifold outlet: 1/2” NPT male
- Relief valve outlet: 1/2”NPT male
- 1/ 2” Brass, silver brazed headers
- Oxygen Pigtails: NFPA 99 compliant, rigid copper, with check valves,
- Other Gas Pigtails: NFPA 99 compliant, 24”flexible stainless steel with check valves
- Digital readout can display psig, kPa orBar
- Connects to remote alarms systems (Up to 3 amps 30 VDC or2 amps 250 VAC)
