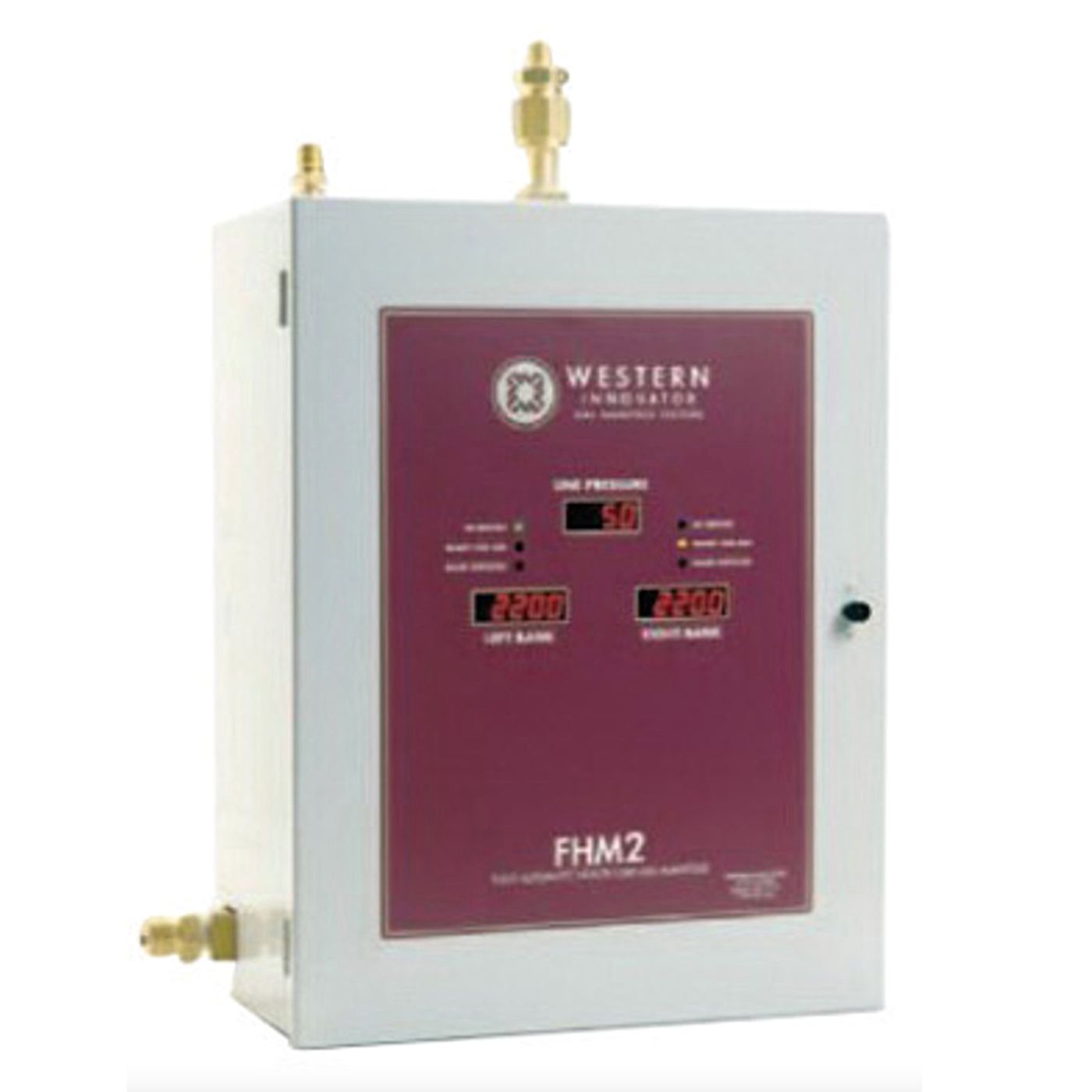

Western Enterprises FHM2-9-8 Fully Automatic Medical Gas Manifold
Western Innovator FHM2 Healthcare Gas Manifolds provide fully automatic system control. An integrated circuitboard monitors cylinder bank pressure electronically, controlling change – over and eliminating the need to manually reset levers or valves.
FHM2 Healthcare Manifolds meet NFPA–99 2012 safety and performance requirements. Easy-to-read digital displays show the line and individual bank pressures. A series of lights for each bank indicates whether the bank is “in service ” , “ ready for use ” , or “ bank depleted ”.
- NFPA Compliant, Fully Automatic Digital System
- CSA Approved Power Supply included
- Maximum inlet pressure: 3000 psig (2000 for CO2 & N2O systems)
-
Maximum Flow:
FHM2 – 2000 scfh
FHM2 (CO2 & N2O) – 35 scfh
FHM2HL (CO2 & N2O) – 500 scfh
FHM2HP – 3000 scfh
-
Internal adjustable dual line regulatorsFHM2 & FHM2HL 30 – 70 psigFHM2HP 100–190 psig
-
Manifold outlet: 1/2” NPT male
-
Relief valve outlet: 1/2”NPT male
-
1/ 2” Brass, silver brazed headers
-
Oxygen Pigtails: NFPA 99 compliant, rigid copper, with check valves,
Other Gas Pigtails: NFPA 99 compliant, 24”flexible stainless steel with check valves
-
Digital readout can display psig, kPa orBar
-
Connects to remote alarms systems (Up to 3 amps 30 VDC or2 amps 250 VAC)
