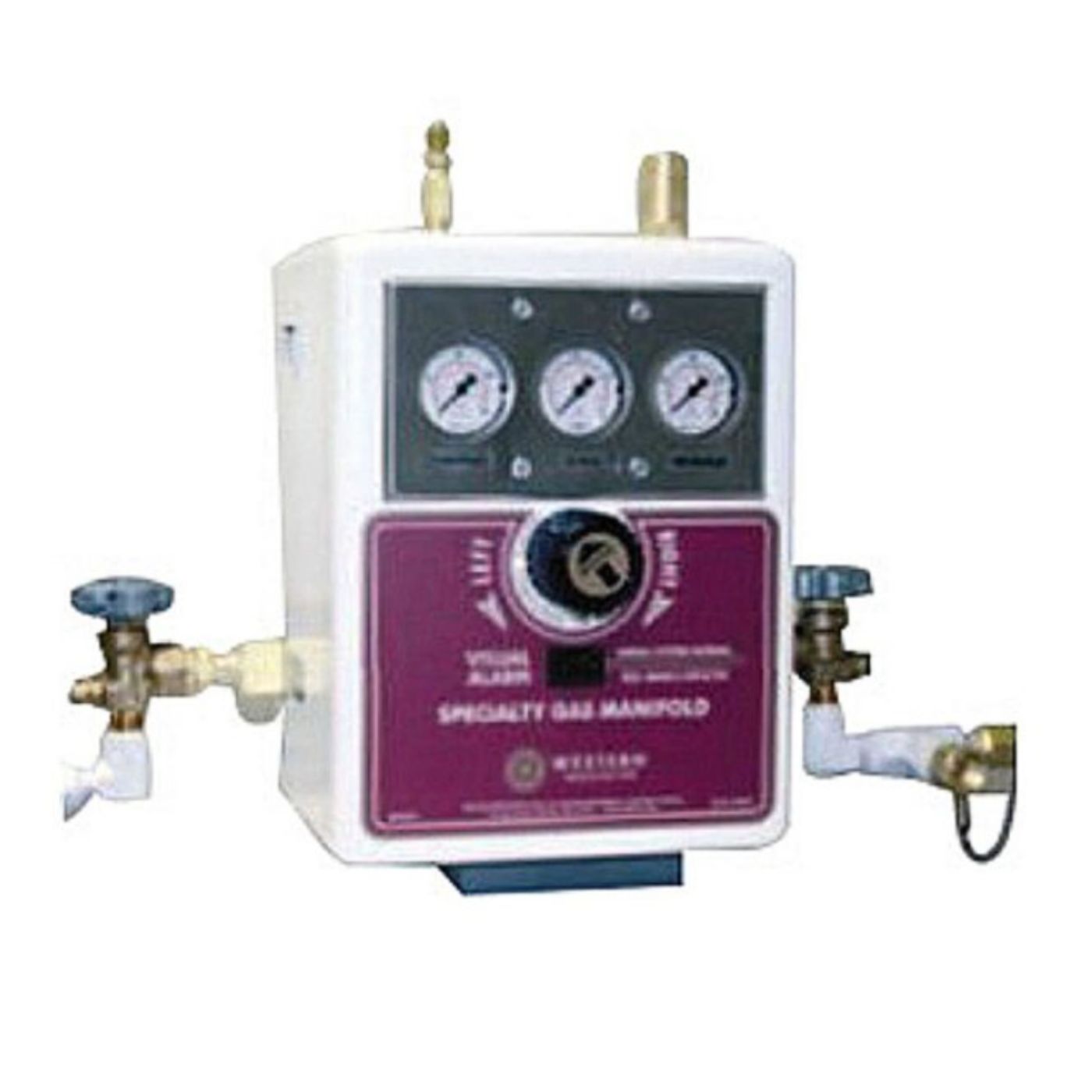

Western Enterprises HBAC2-7-2 High-Purity Automatic Analog Manifold System

Description

Western Enterprises HBAC2-7-2 High-Purity Automatic Analog Manifold System

Western Innovator HBAC2 manifolds are designed and manufactured for high-purity gas delivery applications requiring uninterrupted gas flow and greater cylinder capacities. User friendly and easy to operate, a simple rotation of the control knob resets the unit.

Factory-set functional components are protected inside a tamper-resistant case. A self-contained alarm system clearly indicates the system status. A green light means the system is ready for service. A red light alerts the user that the unit has changed over. Dry contacts in the unit’s power supply box allow connection to remote alarms systems.

• High Purity Automatic Analog System
• CSA Approved Power Source included
• Stainless steel diaphragm regulators
• Helium leak rate integrity: 2 x 10-6 scc/ sec
• Maximum inlet pressure: 3000 psig (2000 psig for CO2 & N2O systems)
• Maximum flow rate: HBAC2 250 scfh Acetylene 20 scfh
• Delivery pressure range: HBAC2 30 –100 psig Acetylene 0 –15 psig HBAC2HP 50 –200 psig
• Manifold outlet: 1/4” O D tube fitting
• 1/2” Brass, silver brazed headers
• 24” flexible stainless steel lined pigtails with check valves
• Relief Valve outlet port: 1/2 NPT female
• Fuel gas units do not include visual alarm, power supply, or any electrical components
• Fuel gas alarm kits are available as an option
• Connects to Remote Alarm systems (Up to 3 amps 30 VDC or 2 amps 250 VAC)
