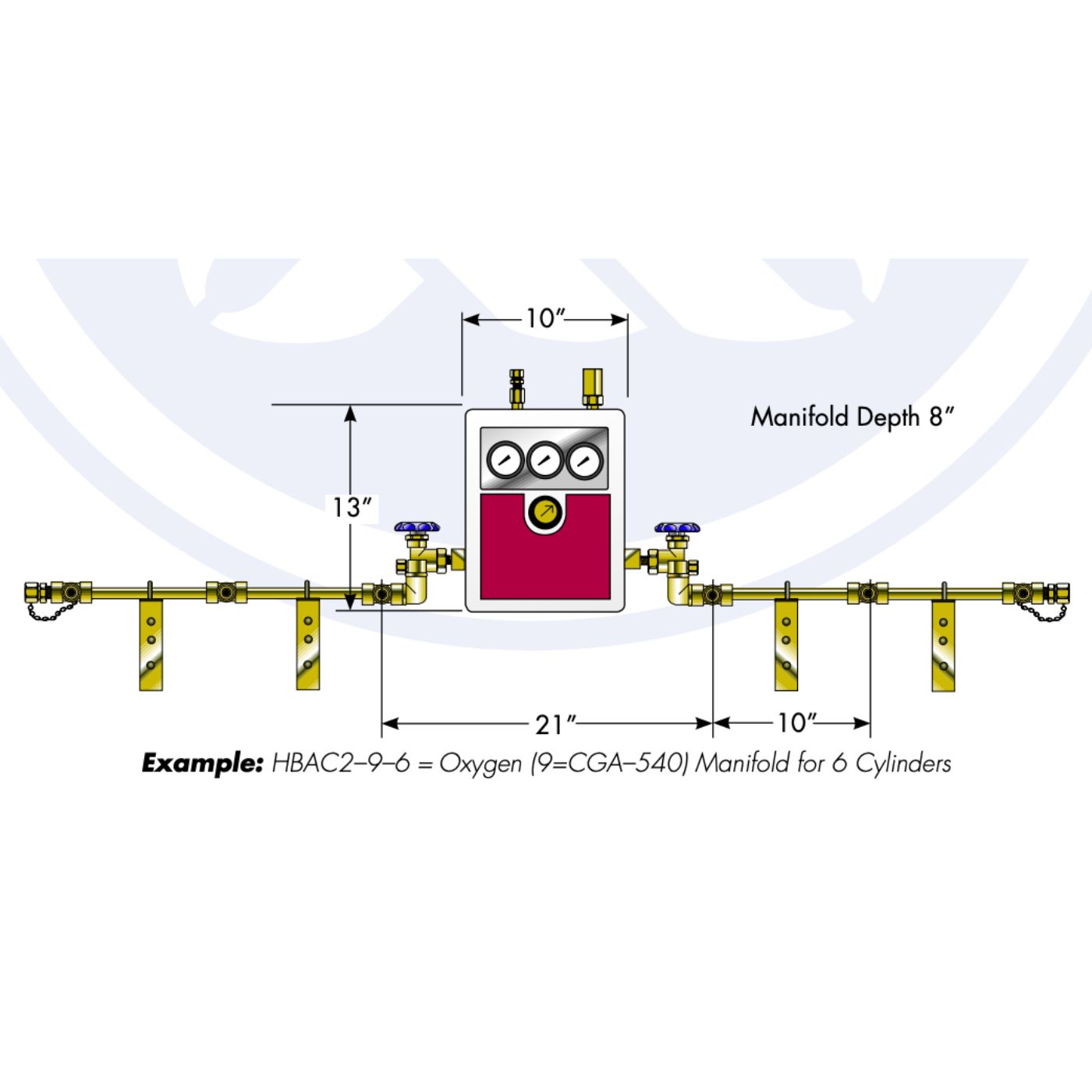

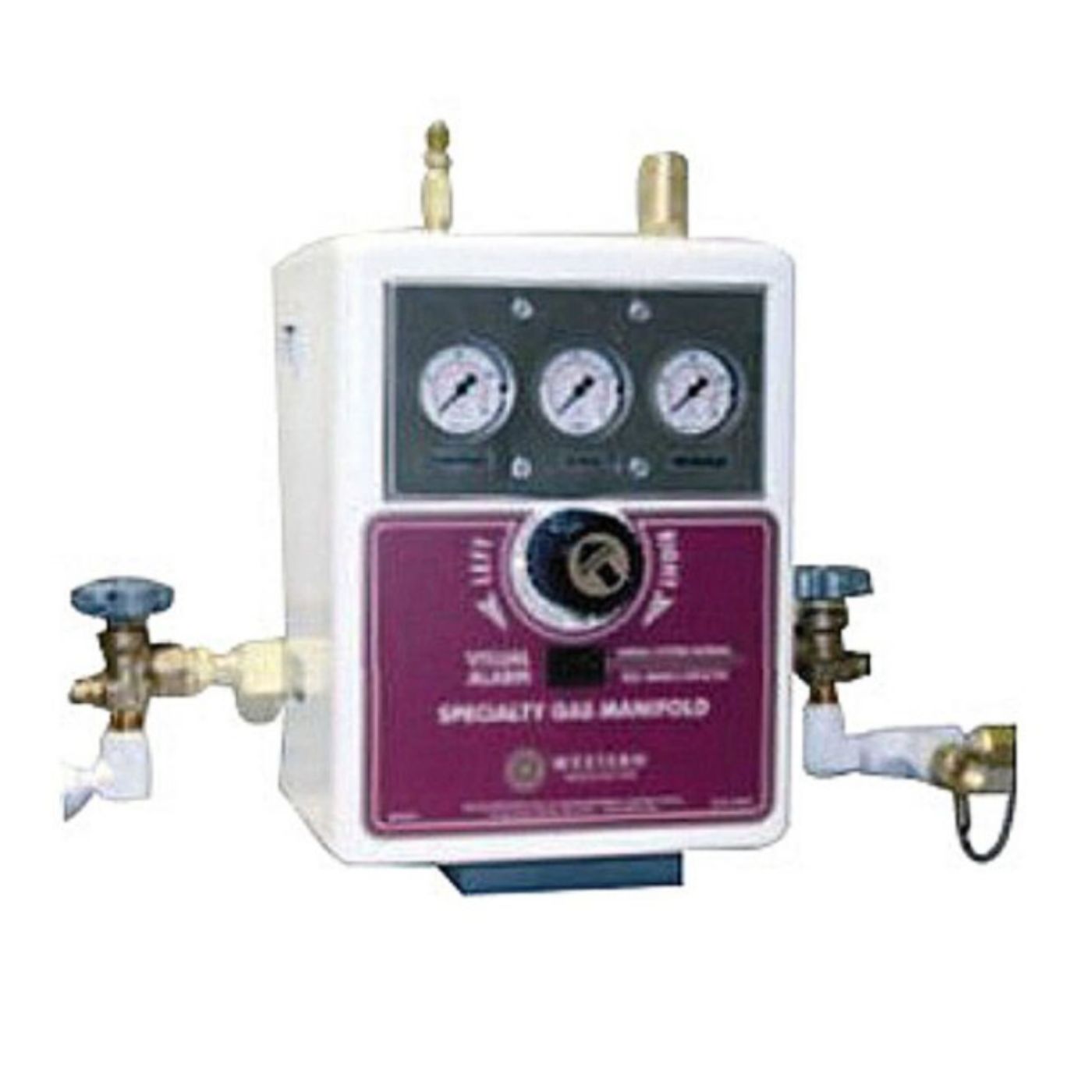

Western HBAC2-4-2 High-Purity Automatic Analog Manifold System
Western Innovator HBAC2 manifolds are designed and manufactured for high-purity gas delivery applications requiring uninterrupted gas flow and greater cylinder capacities. User friendly and easy to operate, a simple rotation of the control knob resets the unit.
Factory-set functional components are protected inside a tamper-resistant case. A self-contained alarm system clearly indicates the system status. A green light means the system is ready for service. A red light alerts the user that the unit has changed over. Dry contacts in the unit’s power supply box allow connection to remote alarms systems.
- High Purity Automatic Analog System
- CSA Approved Power Source included
- Stainless steel diaphragm regulators
- Helium leak rate integrity: 2 x 10 -6 scc/sec
- Maximum inlet pressure: 3000 psig(2000 psig for CO2 & N2O systems)
- Maximum flow rate: HBAC2 250 scfh
- Acetylene 20 scfh
- Delivery pressure range:
HBAC2 Acetylene HBAC2HP
30–100 psig 0–15 psig 50–200 psig
- Manifold outlet: 1/4” OD tube fitting
- 1/2” Brass, silver brazed headers
- 24” flexible stainless steel lined pigtails with check valves
- Relief Valve outlet port: 1/2 N PT female
- Fuel gas units do not include visual alarm, power supply, or any electrical components. Fuel gas alarm kits are available as an option
- Connects to Remote Alarm systems
(Up to 3 amps 30 VDC or 2 amps 250 VAC )
